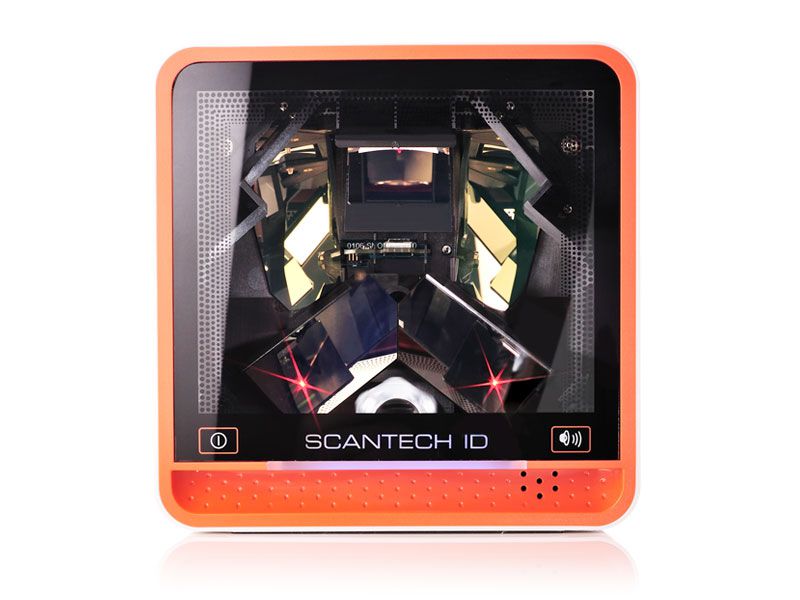

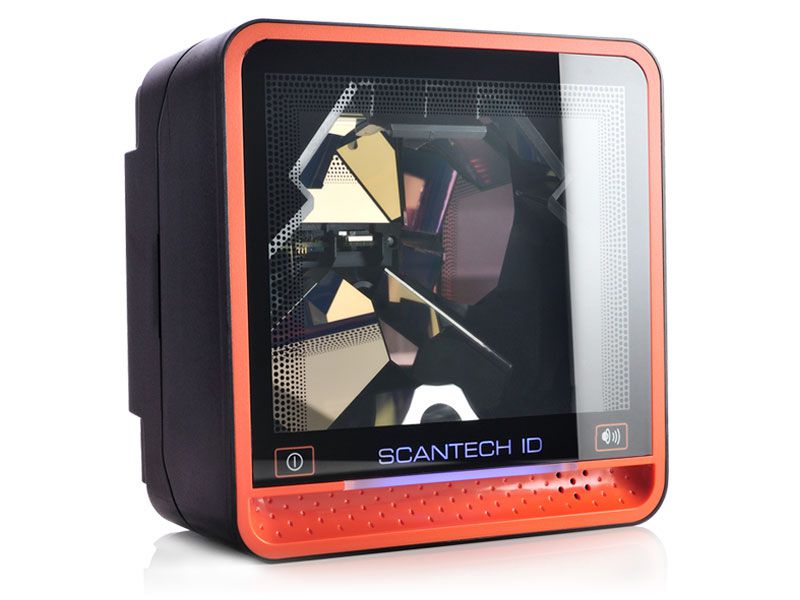

NOVA N-4070

Featuring high inerrability,flexibility, scanning, and decoding capability.

NOVA N-4070
NOVA N-4070
  • NOVA N-4070
  • NOVA N-4070

Features

N-4070 is the continuation of the excellent optical design experience and with a new back-end design, to create an outstanding product performance and reliability. This scanner features high inerrability,flexibility, scanning, and decoding capability. It is ideally suited for supermarkets, pharmacies, petrol stations, and other similar retail stores. Based on the standard product reliability, the product design concept is fully focused on user’s context and mode. It also reduces time and cost. Our solutions provide instant and accurate scanning, making the checkout process more efficient for you and more convenient for your customers.

  • Scan pattern of Omni-directional scanning by maximizing productivity.
  • High scan performance with 30 scan lines and 3,000 scans per second scan speed.
  • Read all 1D standard bar codes include GS1 Databar family symbols to future proof your investment.
  • STAR code reconstruction decoding technology allows easy reading of truncated, damaged and substandard bar codes.
  • Automatic sleep and wake-up mode which saves power and improves lifespan.
  • Support multiple interfaces to allow with only a cable change.
  • Scanner Tuner software allows for easy programming and set up of scanners.
  • Support wall-mount hanging for easy installation.
  • Anti-scraping protection glass window.
  • Touchscreen button for Sleep/Wake & Volume adjustment.
  • Built in RF antenna to be compatible to EAS functionality.
  • 1D Codes
  • GS1

  • NOVA N-4070

    NOVA N-4070

  • Compare to

Tech Specs

Environmental

Ambient light
Up to 7,000 Lux
- Up to 6,400 Lux Up to 4,800 Lux Up to 4,800 Lux

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Indicators Print Contrast Ratio Scan Pattern EAS
152x152x90mm 650±10nm VLD Up to 250mm@13mil/0.33mm, PCS90%, Code 39 5mil/0.127mm Beeper and LED 25% 7 directions scan field, 30 lines YES
- 152x152x90mm Dimension(WxDxH) 116x84.5(upper)x164 mm / 116x100(bottom)x164 mm 67x62x46mm (body only) - 650±10nm VLD 650nm ± 10nm Laser diode 650±10nm VLD - Up to 250mm@13mil/0.33mm, PCS90%, Code 39 Up to 240mm@13mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 - 5mil/0.127mm - 5mil/0.127mm - Beeper and LED Beeper and LED Beeper and LED - 25% 25% 25% - 7 directions scan field, 24 lines 5 direction scan field, 20 lines scan pattern, Single Line option 6 direction scan field, 24 lines scan pattern - YES Yes N/A

Electrical Characteristics

Interface Power
RS232, USB(HID, Virtual COM), KBW, Power USB DC 12V @1.5A
- RS232, USB(HID, Virtual COM), KBW, Power USB RS232, USB(HID, Virtual COM) RS232, USB(HID, Virtual COM), KBW, Power USB (option) - DC 5V@2A DC 5V @2A DC 5V @2A
Configuration Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue User's Manual
Download Download Download Download Download Download

Accessories

  1. Adaptor-12V(Length=2.5m)

    • Adaptor-12V(Length=2.5m)
    • P/N0104-SP00071
    • RemarkSwitch Power Adaptor 90-264V 12V/1.5A DC Plug 90 degree 2.5m (N-4070)
    • Color-

  2. Cable-SID-Power USB(Length=3m)

    • Cable-SID-Power USB(Length=3m)
    • P/N0114-S801121
    • RemarkScantech ID RJ48+Power USB Straight black color 3m length
    • Color-

  3. Cable-SID-PS/2(Length=2m)

    • Cable-SID-PS/2(Length=2m)
    • P/N0114-SM02121
    • RemarkScantech ID PS2 MD6M + MD6F + RJ48 Straight Cable Black color 2m length
    • Color-

  4. Cable-SID-RS232(Length=2m)

    • Cable-SID-RS232(Length=2m)
    • P/N0114-SM01121
    • RemarkScantech ID RS232 DB9F + RJ48 Straight Cable Black Color 2m length
    • Color-

  5. Cable-SID-USB Dual(Length=3m, Dual USB)

    • Cable-SID-USB Dual(Length=3m, Dual USB)
    • P/N0114-S802141
    • RemarkDual USB plug Interface cable, RJ48+USB*2 A type Straight Black color length 3m
    • Color-

  6. Cable-SID-USB(Length=3m, Shielding)

    • Cable-SID-USB(Length=3m, Shielding)
    • P/N0114-S802131
    • RemarkUSB interface cable, RJ48+USB A type 3m length Straight black shielded
    • Color-

  7. Cable-SID-USB+DC Connector(Length=1.5m)

    • Cable-SID-USB+DC Connector(Length=1.5m)
    • P/N0114-SM04221
    • RemarkScantechID MICA USB + DC + RJ48 L=1500mm Straight Cable Black
    • Color-

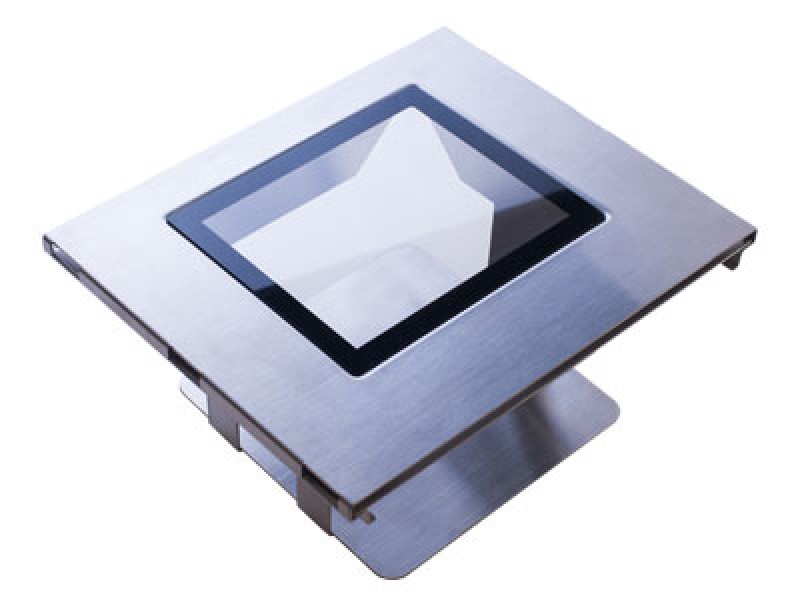

  8. Metal Frame-NOVA

    • Metal Frame-NOVA
    • P/N7184MFB401D1000
    • RemarkIn-counter Metal Frame No Interface V00
    • Color-
