Scantech ID
VS202
Equipments health monitoring system.Built-in intelligent computing modes.
Features

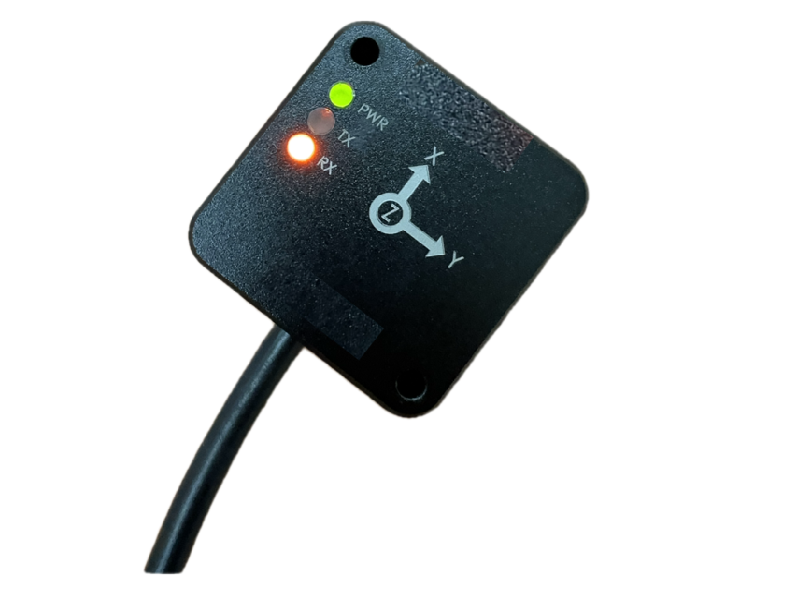

The VS202 is the highly accurate and cost-effective machine health monitoring system. It assembles several vibration sensors with built-in intelligent computing functions, which can actively sense the health status of equipment, and transmit the computing results to the field control system via open transmission protocols. It is a RS485, triaxial (X, Y and Z), high-bandwidth, smart vibration sensor, which can instantly diagnose the health status of machine. The built-in time domain data cleaning and RPM identification functions can handle the monitoring and diagnosis of variable frequency rotating machine and non-rotary equipment easily.
- Providing early warning diagnosis and remaining life estimation of components in high-speed rotating machine.
- Compliant to ISO 10816.
- Built-in intelligent computing the energy of fail-modes such as unbalance, misalignment, looseness, bearing defect, gear mesh defect, van pass defect
- Applicable health monitoring on equipment, such as water or vacuum pump, blower, exhaust fan, roller conveyor belt, warehouse robots, AGV, AMR and robotic arms.
- IP65 sealing protection.
-
VS202
-
