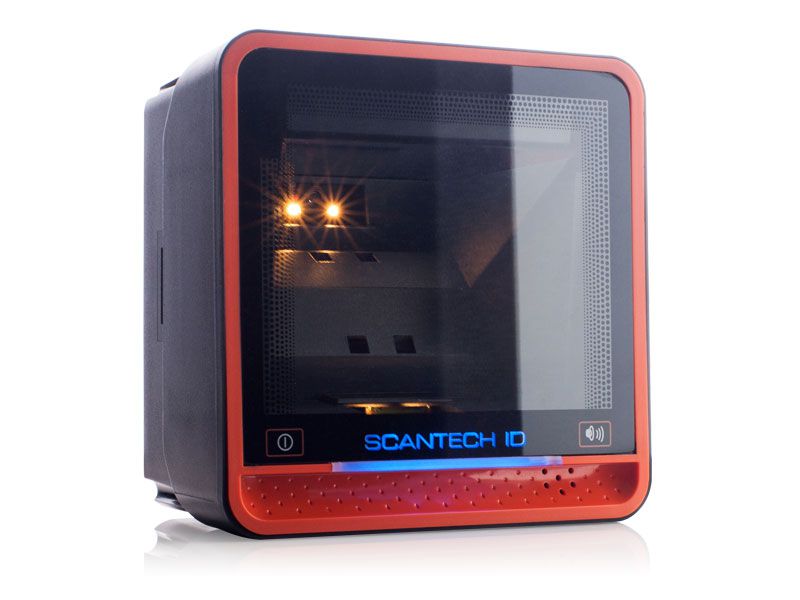

NOVA N-4080i

A high performance, omni-directional area imager bar code scanner.

NOVA N-4080i
  • NOVA N-4080i

Features

The N0VA N-4080i is a high performance, omni-directional area imager bar code scanner. It uses digital imaging technology to provide intuitive and fast reading of 1D and 2D bar codes as well as supporting more advanced features like image capture deactivation. It is designed for various OEM solutions, on-counter reading options. TIt supports up to 500mm reading depth of 1D and 2D barcode, its scan rate is up to 120 scans per second in linear emulation and 60 images per second in 2D area mode. Based on CMOS technology for optimal image sensitivity and dynamic range, the N-4080i features scanning speeds faster than traditional 2D imagers. NOVA N-4080i is a high performance area imager scanner, provides customers with the most cost-effective solution in the market and perfectly suitable and definitely the best choice for any retail and logistic environment.

  • Read the most common 1D, 2D, composite and stacked codes, reduce your investment cost.
  • Boost customer services with good ability to scan virtually mobile bar code on various types of display.
  • With the most compact footprint can fit in the most space constrained areas.
  • Best cost-effective investment.
  • With internal RF antenna which could connect with EAS deactivation system for deactivation purpose.
  • 1D Codes
  • 2D Codes
  • GS1

  • NOVA N-4080i

    NOVA N-4080i

  • Compare to

Tech Specs

Environmental

Ambient light
Up to 100,000 Lux (direct sunlight)
- Up to 100,000 Lux (direct sunlight) 100,000 Lux Max. (Sunlight) - - 100,000 Lux Max. (Sunlight) 100,000 Lux Max. (Sunlight) -

Specifications

Dimension(WxDxH) Light Source Filed of View Depth of Field Resolution Indicators Print Contrast Ratio EAS
152x152x91mm 625±10nm Red LED Horizontal: 40°, Vertical: 25° Up to 300mm@20mil/0.5mm, PCS90%, Code 39 1D: 4mil/0.1mm, 2D: 8mil/0.2mm Beeper and LED 25% YES
- 152x152x90.2mm 152mm(W) x 153.2mm(H) x 84.12mm(L) 97.89 x 74.89 x 137.64 mm 97.89 x 74.90 x 137.94 mm 96.7 x 86.7 x 143.6 mm 77 x 100 x 123 mm - - Visible red light 625nm LED Visible red light 625nm LED Visible White LED Visible White LED Red LED White Light LED - - 80° Horizontal, 55° Vertical Horizontal 62°× Vertical 41° Horizontal – 55°, Vertical – 35° (dual faces) Horizontal – 55°, Vertical – 35° Horizontal – 41°, Vertical – 31° Horizontal – 38°, Vertical – 30° - - - - Up to 210mm@20 mil/0.5mm, PCS90%, Code 39 Up to 210mm@20 mil/0.5mm, PCS90%, Code 39 - - - - 3 mil / 0.076mm 1280 (H) x 800 (V) pixels 1280 (H) x 800 (V) pixels; 3.0 mil (Code 39), 8 mil (QR Code) 3.0 mil (Code 39), 8 mil (QR Code) 640 (H) x 480 (V) pixels, ≥5mil/0.127mmPCS90%,CODE 39) 1D: 4.0 mil/0.1mm, 2D: 6.67mil/0.17mm - - Beeper and LED Beeper and LED Beep and LED (Standby Orange, Good read Blue) Beep and LED Beep and LED Beep - - - ≥20% - - >= 25% >= 20% - - Built in EAS RF antenna - - - - - -

Electrical Characteristics

Interface Power
RS232, USB (Virtual COM) DC 5V @2A
- RS232, USB HID or Virtual COM RS-232 or USB( HID or Virtual COM.); cable length 180cm RS232, USB (HID or Virtual COM) RS232, USB(HID, Virtual COM) USB or RS-232 - - - DC 5V @2A DC 5V DC 5V @2A DC 5V @2A DC 5V DC Adaptor +5V ±5% -
Configuration Default Card Configuration Guide Datasheet E-Catalogue Specification
Download Download Download Download Download
