VM606
Mobile Dimensioning cart for Online shopping and Cosmeceutical warehouses
Features

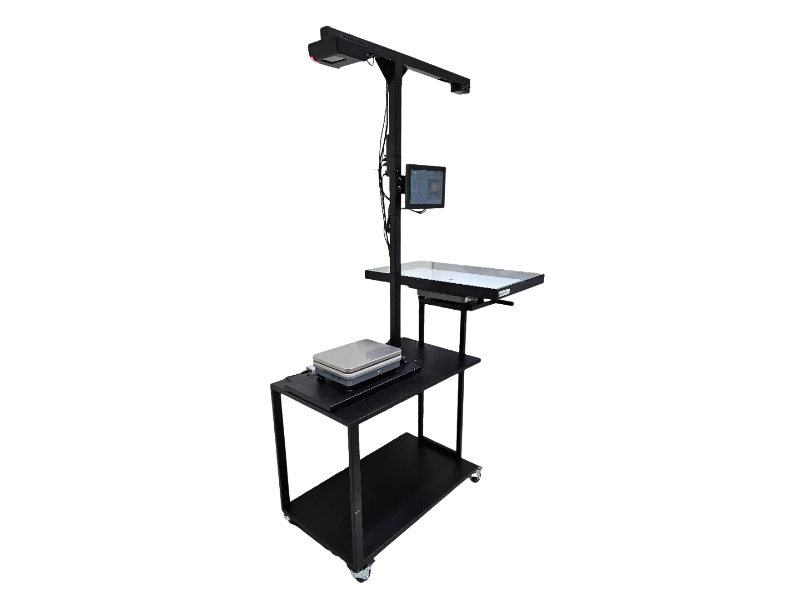

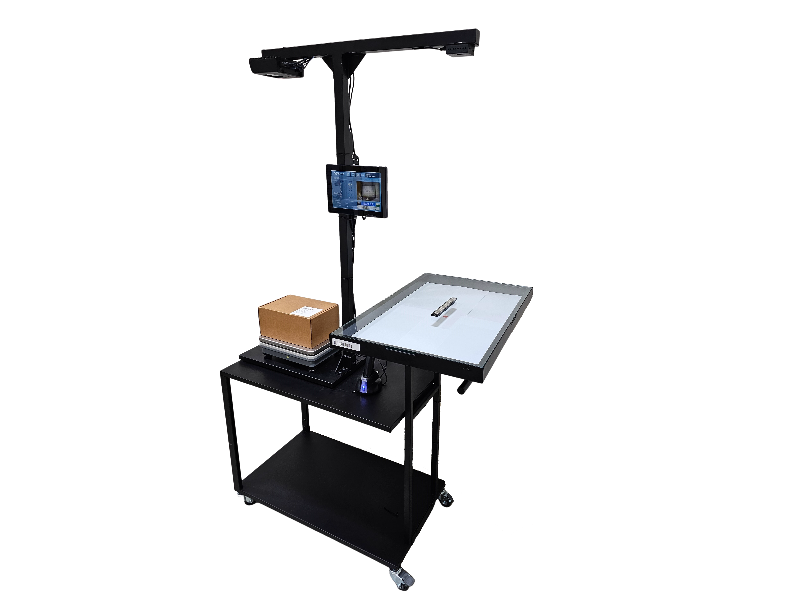

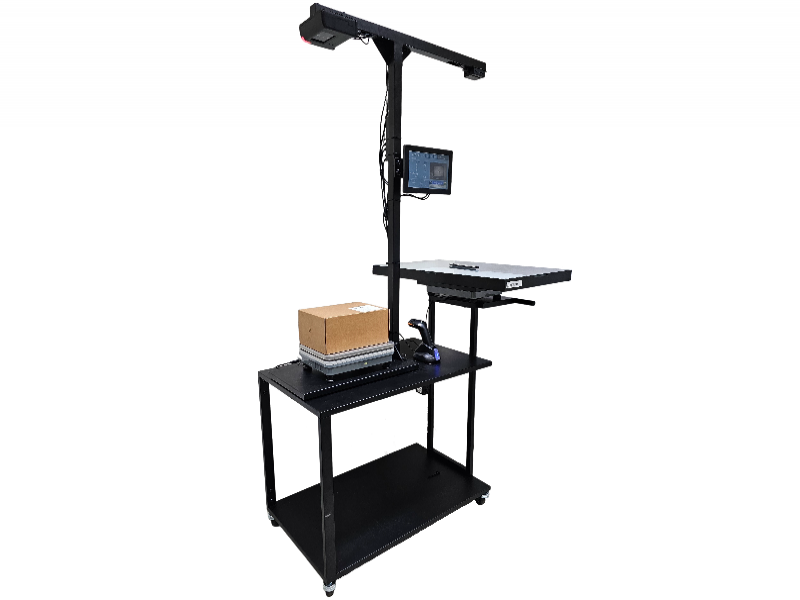

The VM606 measuring cart is specially designed for online shopping e-commerce, pharmaceutical and cosmetic warehouses. It can measure dimension and weight for tiny objects with transparent and light packing up to medium size even large package parcels. The cart consists of a long work desk that accommodates a dual dimensioning head on a T-shaped frame station and other hardware including a transparent 80cm X 50cm rack, two weighing scales, a barcode scanner, printer (optional) and portable power system (optional) which enables 12+ hours working shifts. Regular and irregular-shaped parcels are automatically calculated. Its daily measurement data or snapshot can be online transmitted to a designated host simultaneously or by set schedule. The VM606 series is an advanced dimensioning system that quickly and accurately measures parcels in high-volume shipping applications. With its 3D-imaging technologies and advanced algorithms to optimize time and throughput for static outbound shipments for small to medium-sized operations. You can do local setup and daily operation by its touch screen; or you can do remote configuration and measurement by access its built-in web-based tool from an Ethernet connection host. You can set up a schedule to transmit daily measurement data and snapshot to a designated host. It supports various automatic and manual measurement modes, its measurement process takes about one second with no specific orientation needed within the measurement area. Parcels and irregular-shaped packages like cylinders, spheres, tubes, polybags and uneven shapes are automatically calculated, eliminating the risk for human error. Each dimension provides an overhead image for use during claim disputes on damaged packages.
- Dual dimensioning stations each station has 1 dimensioning camera and weighing scale; one station is measuring short height or transparent packing small parcels, another one is small to medium size parcels. It is suitable for online shopping warehouse.
- Requires virtually no special alignment or special handling while placing a package to increase throughput with adjustable scan zone and area of interest.
- Instantly measure standard and irregular shaped parcels with precision.
- Supports various configurable measuring ways, automatic, manual, barcode scanner or weighing scale triggering measurement.
- Its daily measurement data or snapshot can be transmitted to a designated host by a pre-set schedule or manually.
- No additional installation of software required on your PC. When connected to a network via static IP or DHCP, you can access its built in web-based tool to do remote configuration, monitoring and measurement.
- VM606 Including a big mobile cart, dual 3D volume measuring cameras, 2 weighing scale, a transparent bracket, a 2D barcode scanner, a 10” touch display and a height adjustable stand (camera height 70cm/95cm/120cm), optional: Thermal printer.
- Due to battery's certificates varied by country, we suggest you to purchase the portable battery locally if needed on your own.
- Built in both volume measuring and remote management software.
-
