IG500BT

Rugged 2.4G RF and Bluetooth wireless gun-type 2D barcode and OCR-B character scanner

IG500BT
IG500BT
IG500BT
  • IG500BT
  • IG500BT
  • IG500BT

Features

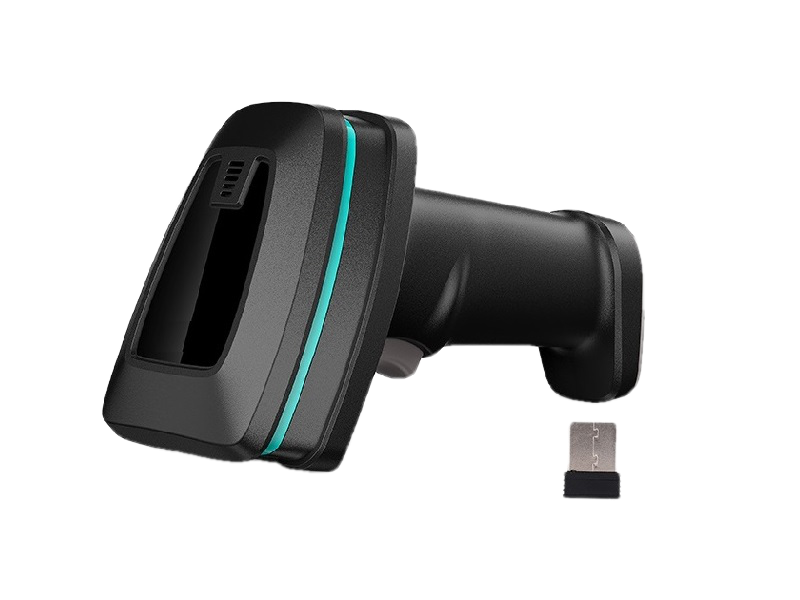

IG500BT is a wireless gun-type 2D bar code scanner which equipped both 2.4G RF and Bluetooth wireless protocols, has most modern design with rugged casing and supports IP52 sealing protection, which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate to user environment. An optional stand can be ordered to facilitate hand-free reading application. With its unmatched performance for the majority of 1D and 2D bar codes, OCR-B character reading to increase your productivity. Its out of range or batch transmission mode with memory capacity stores up to 80,000 inputs of EAN13 barcodes. Its 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective transmission distance can reach 100 meters, while Bluetooth 4.2 connection reach 50 meters in open space. IG500BT is a high performance barcode scanner which provides customers with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail, logistic and warehousing environment.

  • Support most 1D, 2D and GS1 Databar codes, and OCR-B character reading.
  • Good performance on both display and printed label reading.
  • Designed as IP52 sealing protection.
  • 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective 50m in open space.

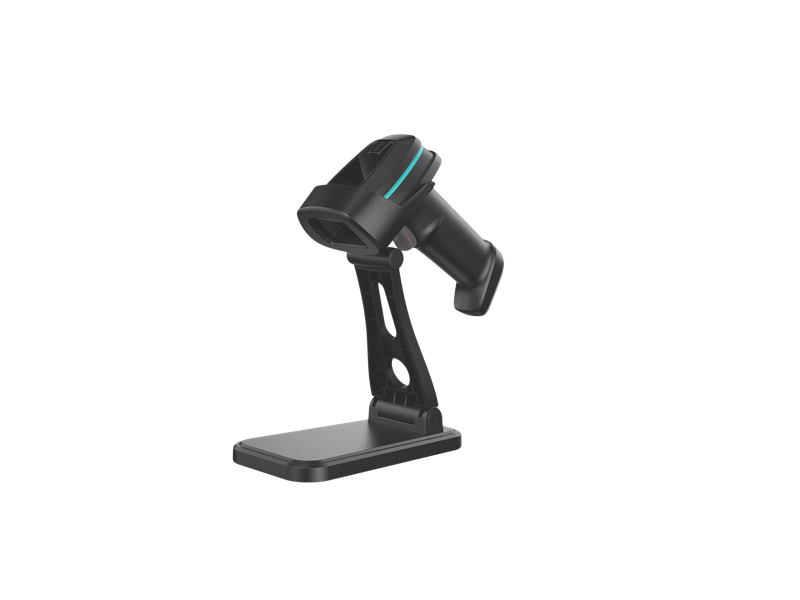

  • A stand option can be ordered to facilitate hand-free reading options.
  • Vibration when scanning.

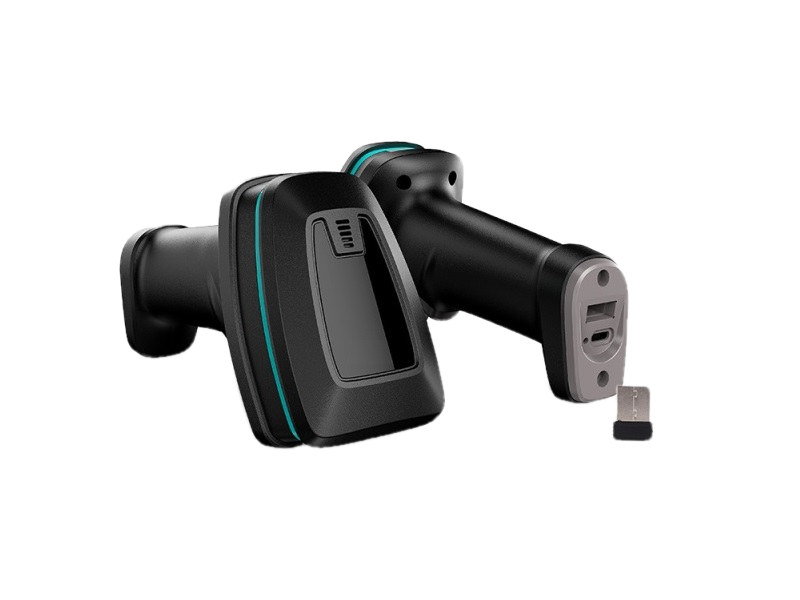

  • The rear end is designed with a storage compartment for the RF/BT receiver dongle, which can effectively prevent loss
  • 1D Codes
  • 2D Codes
  • GS1

  • IG500BT

    IG500BT

  • Compare to

Tech Specs

Environmental

Ambient light Sealing Protection
100,000 Lux Max. IP52
- - 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight) 100,000 Lux Max. - - - - - - - - - - IP52

Specifications

Material Dimension(WxDxH) Available Color Light Source Filed of View Depth of Field Resolution Scan Rate Pitch Skew Roll Indicators LED Indicator Drop Resistance Readable Barcodes Sensor
ABS 172 x 67 x 87mm Black White light illumiation, Green aimer Horizontal – 45°, Vertical – 36° 450mm@20mil/0.5mm, PCS90%, QRCode 1D: 3mil/0.076mm PCS90% Code39, 2D:7mil/0.18mm PCS90%, QRCode 60 fps ±5°~60° (±5°) ±5°~60° (±5°) 360° Beeper and LED Good read: Beep and Blue LED flash RF/BT Connection: Blue on Charge : Purple 47.24 inches(120cm) Most 1D, 2D barcode and support to read OCR-B character 1280 (H) x 800 (V) pixels
- - - - - ABS ABS ABS ABS ABS ABS - - 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） L167x W70 x H88mm - 172 x 67 x 87mm - - - - - Black Black body, orange button and windows side Black body, orange button and windows side Black body, dark gray button and windows side Black body, dark gray button and windows side Black - - White light LED White light LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer White light illumiation, Green aimer - - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° Horizontal – 45°, Vertical – 36° - - - - - - - 320 mm@20mil/0.5mm, PCS90%, Code39 - 420 mm@20mil/0.5mm, PCS90%, Code39 450mm@20mil/0.5mm, PCS90%, QRCode - - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode 1D: 3mil/0.076mm PCS90% Code39, 2D: 7mil/0.18mm PCS90% QRCode - - 60 fps 60 fps (at full resolution) 60 fps (at full resolution) - - Motion toerlance 25cm per second - Motion tolerance: 35cm per second 60 fps - - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~60° (±5°) - - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~55° (±5°) 5°~60° (±5°) - - - - - 360° 360° 360° 360° 360° 360° - - - Beeper and LED - Beep and LED Beep and LED - Beep and LED Beeper and LED Beeper and LED - - - - - - - - - - - - - 59.05 inches (150cm) drop on concrete surface - 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) drop on concrete surface - - - - - - - - - - Most 1D and 2D Symbologies, Support to read OCR-B character - - - - - 640(H) x 480(V) pixels 640(H) x 480(V) pixels 640(H) x 480(V) pixels 1280(H) x 800(V) pixels 1280(H) x 800(V) pixels -

Weight

Body weight
Approx. 195g/6.88oz
- - - Approx. 160g / 5,65 oz - - - 184.9g (Scanner)/ 113.4g (Cradle) - - Approx. 220g / 7,76 oz (include cable)

Electrical Characteristics

Power Stand by (Typ.) Operation (Typ.) Reads per charge Recharge time
Li-Ion 3.7V/2000mA <130mA <280mA 80,000 times in continuous read Approx. 5 hours
- - DC 5V DC 5V DC 5V - - - - - 5V - - - - - - - - - - < 130 mA - - - - - - - - - - < 280 mA - - - - - - - - - - - - - - - - - - - - - -

Radio Characteristics

Frequency Band Transmission Range
2.4G RF and Bluetooth 4.2 Up to 100m line of sight for 2.4G RF, 50m for Bluetooth 4.2
- - - - - - - - - - - - - - - - - - - - - -
Configuration Quick Guide Datasheet
Download Download
