MR800

Providing you with a cost-effective magnetic stripe reader to satisfy the POS industries needs.

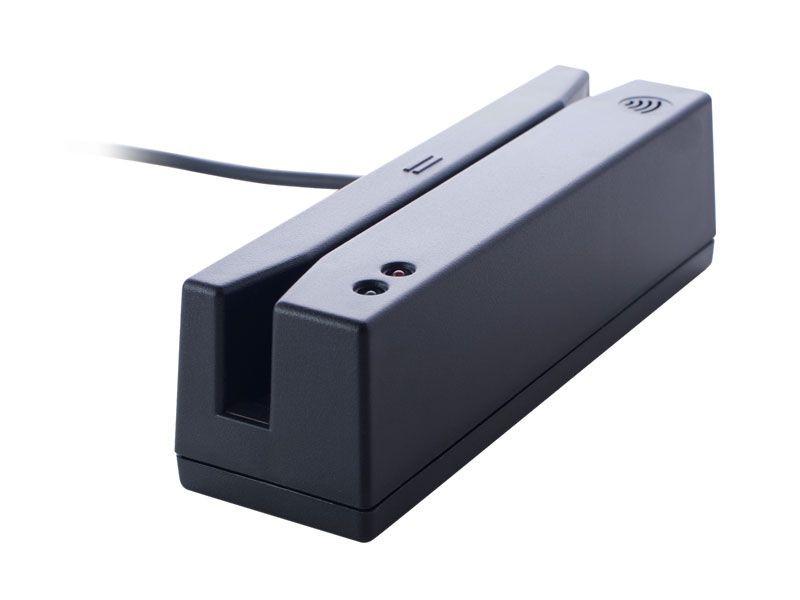

MR800

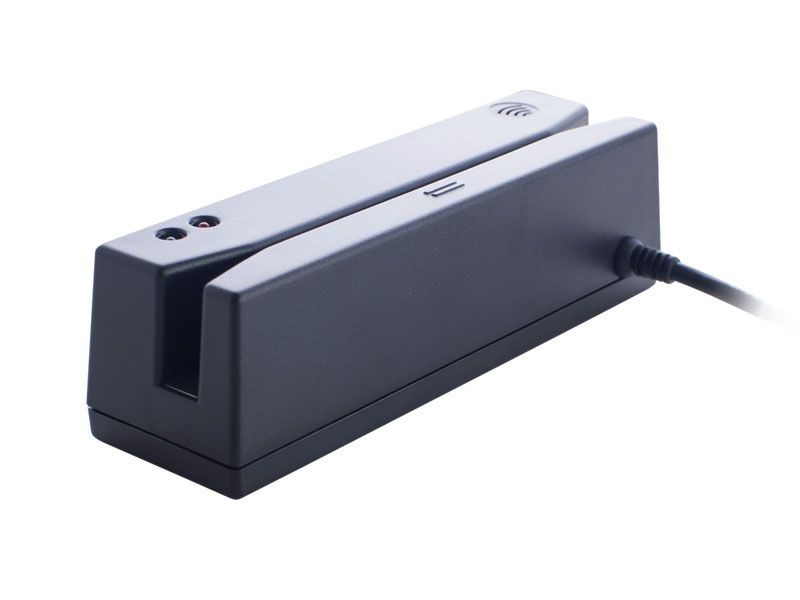

MR800
  • MR800
  • MR800

Features

MR800 Magnetic Stripe Reader provides you with a cost-effective magnetic stripe reader to satisfy the POS industries needs. MR800 is a well designed magnetic stripe reader with badge length 90mm and the data format complies with ISO 7810-7813, JISII standards. It reads magstripe cards with range from 300 to 4000 Oersted. MR800 integrates USB (HID), KB Wedge, RS232 for three interfaces.

  • Reading magnetic stripe card complied with ISO 7810~3 formats.
  • Reading magnetic stripe card complied with JISII(Option).
  • Magnetic stripe reader with badge length 15cm.
  • Card Reading Speed: 10 to 100 cm per second.
  • Reading 300 to 4000 Oersted cards
  • Support beep and LED for each stripe status indicators.
  • Parameter program software for Windows series version.
  • reading card data on single, dual, or triple track in one swipe
  • Support 3 in 1 interface that changes interface by replacing cable.
  • Magnetic Head Life 1,000,000 passes.

  • MR800

    MR800

  • Compare to

Tech Specs

Specifications

Scan Rate Magnetic Card Tracks T1&T2&T3
100-1000mm/sec IISO 7810-7813 and JISII Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters
- - Smart detection, up to 500 scans 100-1000mm/sec 60 images per second - 60 fps (at full resolution) - - - - - - - - - - - Smart detection, up to 500 scans - - - - 60 images 100-1000mm/sec 100 scans ±10% - - - - - - Smart detection, up to 500 scans 100-1000mm/sec - - 60 images Min frame rate > 8fps 50-500mm/sec 50-500mm/sec - - - - IISO 7810-7813 and JISII - - - - - - - - - - - - - - - - - - - - - - - - - - - - - IISO 7810-7813 and JISII - - - - - - - - - - Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters - - - - - - -

Life Time

Life Cycle
1,000,000 times
- - - 1,000,000 times - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1,000,000 times - - - - - - -

Electrical Characteristics

Interface
TTL/KBW/RS232/USB
- - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB RS232, USB (HID, Virtual COM) - - USB or RS-232 wired cable a USB or RS-232 wired cable to a host - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - - - - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) - - - - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - RS-232, USB (HID, Virtual COM) USB 2.0 - - -
Datasheet Driver-OPOS E-Catalogue Specification Utility
Download Download Download Download Download
