IG521 / IG522

Wired and Wireless Hybrid Barcode Scanner

IG521 / IG522
IG521 / IG522
IG521 / IG522
IG521 / IG522
  • IG521 / IG522
  • IG521 / IG522
  • IG521 / IG522
  • IG521 / IG522

Features

IG521 or IG522 is a modern design, gun-type wireless 2D bar code scanner. Its wireless supports both 2.4G RF and Bluetooth, has most modern design, which is designed especially for retail, logistic, manufacturing, mobile payment, express delivery, inventory management, food traceability, asset inventory and warehousing management market. It can easily read the barcode on paper label, display screen and other media. The product uses enhanced wireless 2.4G transmission technology, its 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective transmission distance can reach 60 meters, while Bluetooth connection reaches 30 meters in open space. Its out of range or batch transmission mode with memory capacity stores up to 20,000 inputs of EAN13 barcodes. IG521 or IG522 has good performance for the majority of 1D and 2D bar codes, Post code, Composite codes, and OCR-B character reading to increase your productivity. It can easily read the barcodes on label, display and other media.It is a high performance barcode scanner which provides customers with the most cost-effective solution in the market.

  • Support most 1D, 2D, GS1 Databar codes, Post code, composite codes and OCR-B.
  • Good performance on both display and printed label reading.
  • Communication Interface : USB wired, wireless 2.4G or Bluetooth 4.2.
  • 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective transmission distance in open space can reach >= 60 meters. With Bluetooth 4.2 connection reach up to 30m in open space.

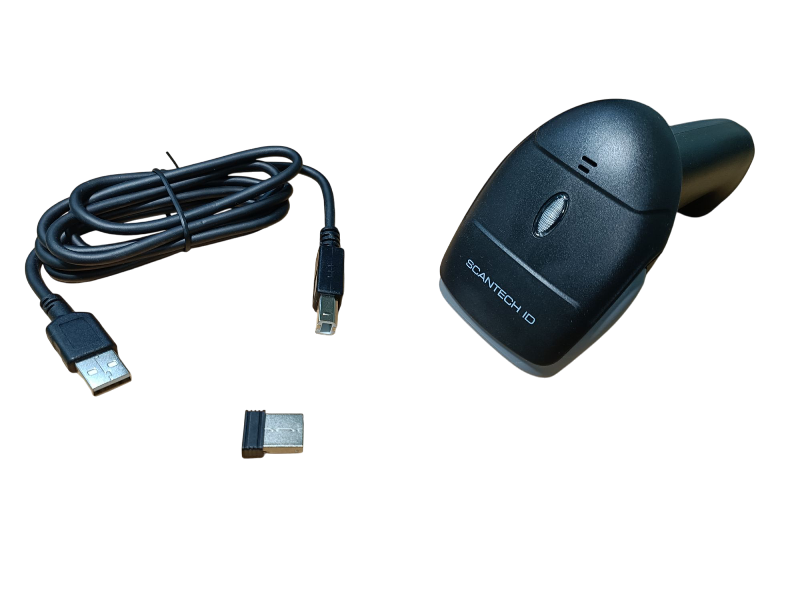

  • IG521 scanner is built in both 2.4G RF and Bluetooth, equipped with a type-C charge cable and a 2.4G RF receiver dongle.

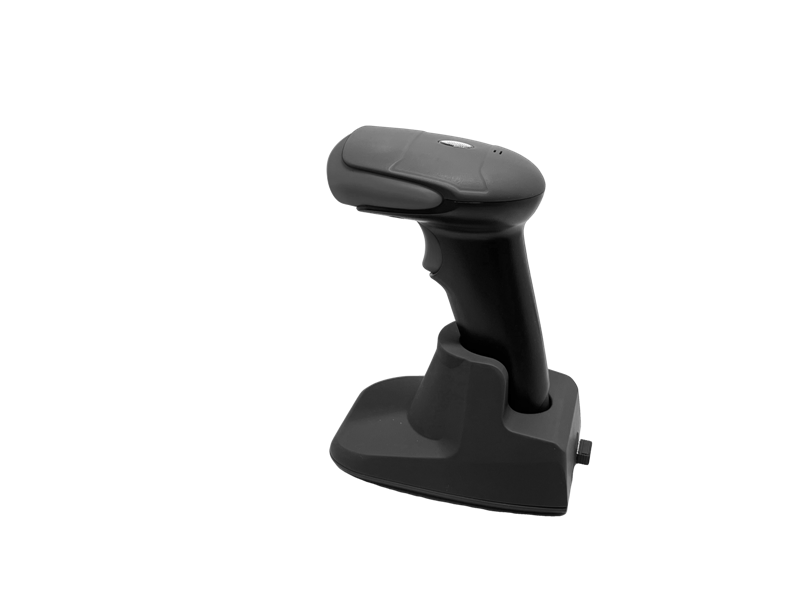

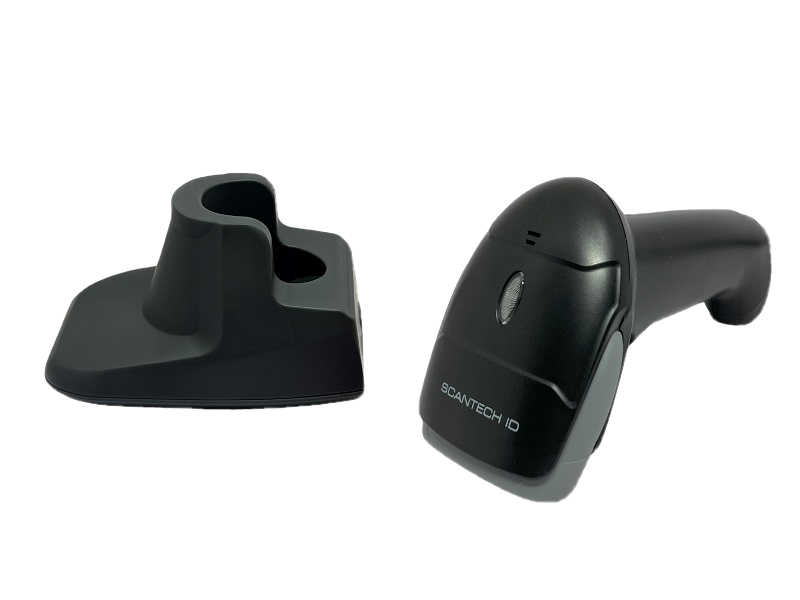

  • IG522 scanner is built in both 2.4G RF and Bluetooth, equipped with a charge cradle and a 2.4G RF receiver dongle.
  • 1D Codes
  • 2D Codes
  • GS1

  • IG521 / IG522

    IG521 / IG522

  • Compare to

Tech Specs

System Architecture

Dimensions (WxHxL) Weight
L167 x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） 184.9g (Scanner)/ 113.4g (Cradle)
- - - - - - L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） - - - - - - - 184.9g (Scanner)/ 113.4g (Cradle) -

Environmental

Operating temperature Storage temperature Humidity Ambient light
-20°C to 50°C ( -4°F to 122°F ) -40°C to 60°C ( -40°F to 140°F ) 5% to 95% (Non-condensing) 100,000 Lux Max. (Sunlight)
- - 0°C to 50°C (32°F to 122°F) - -20 °C to 50 °C (-4 °F to 122 °F ) -20 °C to 50 °C (-4 °F to 122 °F ) - -20 °C to 50 °C (-4 °F to 122 °F ) - - -20°C to 70°C (-4°F to 158°F) - -20 °C to 60 °C (-4 °F to 140 °F ) -20 °C to 60 °C (-4 °F to 140 °F ) - -20 °C to 60 °C (-4 °F to 140 °F ) - - 20% to 95% (Non-condensing) - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) - 5% to 95% (Non-condensing) - 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max.

Data Inputs

Symbologies Supported
Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character.
- - - - - Most 1D and 2D barcodes, refer to datasheet Most 1D and 2D barcodes (please refer to datasheet) Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character.

Specifications

Material Available Color Light Source Filed of View Depth of Field Resolution Scan Rate Pitch Skew Roll Indicators Cable Bending Test Drop Resistance Print Contrast Ratio Sensor
ABS Black body, dark gray button and windows side White light illumiation, Red bar aimer Horizontal – 35°, Vertical – 27° 420 mm@20mil/0.5mm, PCS90%, Code39 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode Motion tolerance: 35cm per second ±5°~60° (±5°) ±5°~55° (±5°) 360° Beeper and LED 30 times/min@500g/90° 47.2 inches(120cm) ≥15% 1280(H) x 800(V) pixels
- - - - ABS ABS ABS ABS - - - - Black Black body, orange button and windows side Black body, orange button and windows side Black body, dark gray button and windows side - White light LED White light LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° - - - - - - 320 mm@20mil/0.5mm, PCS90%, Code39 - - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm - 60 fps 60 fps (at full resolution) 60 fps (at full resolution) - - Motion toerlance 25cm per second - - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) - - - - 360° 360° 360° 360° - - Beeper and LED - Beep and LED Beep and LED - Beep and LED - - - - - - - - - 59.05 inches (150cm) drop on concrete surface - 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) - PCS30%@5mil/0.127mm - PCS25% PCS25% >=25% >=25% >=PCS15% - - - - 640(H) x 480(V) pixels 640(H) x 480(V) pixels 640(H) x 480(V) pixels 1280(H) x 800(V) pixels

Life Time

MTBF(Calculated)
50,000 hours minimum
- - - - - - - 50,000 hours

Wireless Characteristics

Wireless Standard Battery Recharge Time Scan Per Charge Radio Transmission Range
2.4GHZ（ISM frequency band）, Bluetooth 4.2 Li-Ion 3.7V/2000mA Approx. 7 hours (5V@1000mA) >= 12 hours in continuous read >= 60m line of sight for 2.4G RF, up to 30m for Bluetooth 4.2
- - HID and SPP profile supported - - - 2.4GHZ（ISM frequency band）, Bluetooth 4.2 - - - Li-ion 3.7V / 2600 mAh - - - Li-Ion 3.7V/2000mA - - - Approx. 5 hours - - - Approx. 7 hours (5V@1000mA) - - - 20,000 times in continuous read - - - >= 12 hours in continuous read - - - - - - - >= 60m line of sight for 2.4G RF, up to 30m for Bluetooth 4.2 -
Configuration Guide Datasheet
Download Download
