Scantech ID
IG520
Economical 2D Barcode Scanner
Features
IG520 is a general purpose, good performance 2D barcode scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment.IG520 has modern design and good performance for the majority of 1D and 2D bar codes, Post code, Composite codes, and OCR-B character reading to increase your productivity. It can easily read the barcodes on label, display and other media.An optional stand can be ordered to facilitate hand-free reading application.
- Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character.
- Good performance on both display and printed label reading.
- Support USB HID, Virtual COM and RS-232 interfaces.
- Interface cable is replaceable.

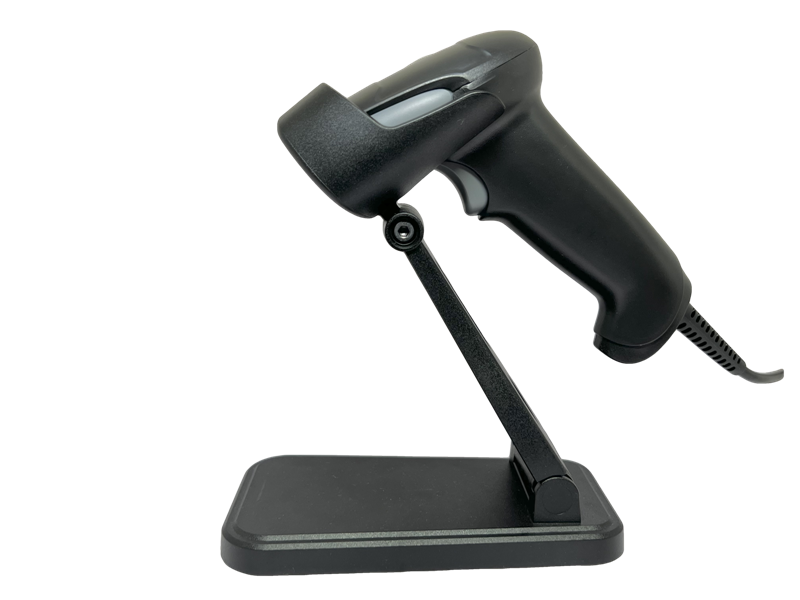

- An optional stand can be ordered to facilitate hand-free reading application.
- 1D Codes
- 2D Codes
- GS1
-
IG520
-
Compare to
Tech Specs
Environmental
| Operating temperature | Storage temperature | Humidity | Ambient light |
|---|---|---|---|
| -20 °C to 50 °C (-4 °F to 122 °F ) | -20 °C to 60 °C (-4 °F to 140 °F ) | 5% to 95% (Non-condensing) | 100,000 Lux Max. |
| - - - - 0°C to 50°C (32°F to 122°F) - -20 °C to 50 °C (-4 °F to 122 °F ) -20 °C to 50 °C (-4 °F to 122 °F ) - -20°C to 50°C ( -4°F to 122°F ) -10 °C to 50 °C (14 °F to 122 °F ) - | - - - - -20°C to 70°C (-4°F to 158°F) - -20 °C to 60 °C (-4 °F to 140 °F ) -20 °C to 60 °C (-4 °F to 140 °F ) - -40°C to 60°C ( -40°F to 140°F ) -20 °C to 70 °C (-4 °F to 158 °F ) - | - - - - 20% to 95% (Non-condensing) - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) - 5% to 95% (Non-condensing) 20% to 95% (Non-condensing) - | - - - 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight) 100,000 Lux Max. 100,000 Lux Max. |
Data Inputs
| Symbologies Supported |
|---|
| Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character. |
| - - - - - - - Most 1D and 2D barcodes, refer to datasheet Most 1D and 2D barcodes (please refer to datasheet) Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character. - - |
Specifications
| Material | Dimension(WxDxH) | Available Color | Light Source | Filed of View | Resolution | Pitch | Skew | Roll | Indicators | Stand by | Operation | Drop Resistance | Print Contrast Ratio | Sensor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABS | L167x W70 x H88mm | Black body, dark gray button and windows side | White light illumination, Red bar aimer | Horizontal – 35°, Vertical – 27° | 1D: 3mil/0.076mm, 2D: 7mil/0.18mm | 5°~50° (±5°) | 5°~50° (±5°) | 360° | Beep and LED | 57 mA | < 130 mA | 47.24 inches (120cm) | >=PCS15% | 1280(H) x 800(V) pixels |
| - - - - - - ABS ABS ABS ABS ABS ABS | - - - 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） - 172 x 67 x 87mm 172 x 67 x 87mm | - - - - - - Black Black body, orange button and windows side Black body, orange button and windows side Black body, dark gray button and windows side Black Black | - - - White light LED White light LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumiation, Red bar aimer White light illumiation, Green aimer White light illumiation, Green aimer | - - - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 45°, Vertical – 36° Horizontal – 45°, Vertical – 36° | - - - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode 1D: 3mil/0.076mm PCS90% Code39, 2D: 7mil/0.18mm PCS90% QRCode 1D: 3mil/0.076mm PCS90% Code39, 2D:7mil/0.18mm PCS90%, QRCode | - - - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) ±5°~60° (±5°) 5°~60° (±5°) ±5°~60° (±5°) | - - - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) ±5°~55° (±5°) 5°~60° (±5°) ±5°~60° (±5°) | - - - - - - 360° 360° 360° 360° 360° 360° | - - - - Beeper and LED - Beep and LED Beep and LED - Beeper and LED Beeper and LED Beeper and LED | - - - - - - 57 mA 57 mA - - - - | - - - - - - < 130 mA < 130 mA - - - - | - - - 59.05 inches (150cm) drop on concrete surface - 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) 47.2 inches(120cm) 47.24 inches (120cm) drop on concrete surface 47.24 inches(120cm) | - - - PCS30%@5mil/0.127mm - PCS25% PCS25% >=25% >=25% ≥15% >=20% - | - - - - - - 640(H) x 480(V) pixels 640(H) x 480(V) pixels 640(H) x 480(V) pixels 1280(H) x 800(V) pixels - 1280 (H) x 800 (V) pixels |
Life Time
| MTBF(Calculated) |
|---|
| 50,000 hours |
| - - - - - - - - - 50,000 hours minimum - - |
Electrical Characteristics
| Interface |
|---|
| Support USB HID, Virtual COM and RS-232 interfaces. |
| - - - RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) - USB or RS-232, cable is non-replaceable - - - - |
