IG221 / IG222

Wired and Wireless Hybrid Barcode Scanner

IG221 / IG222
IG221 / IG222
IG221 / IG222
  • IG221 / IG222
  • IG221 / IG222
  • IG221 / IG222

Features

IG221 or IG222 is a gun-type wireless 2D bar code scanner. Its wireless supports both 2.4G RF and Bluetooth, has most modern design, which is designed especially for retail, logistic, manufacturing, mobile payment, express delivery, inventory management, food traceability, asset inventory and warehousing management market. It can easily read the barcode on paper label, display screen and other media. The product uses enhanced wireless 2.4G transmission technology, its 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective transmission distance can reach 60 meters, while Bluetooth connection reaches 30 meters in open space. Its out of range or batch transmission mode with memory capacity stores up to 20,000 inputs of EAN13 barcodes. IG221 or IG222 is a high performance barcode scanner which provides customers with the most cost-effective solution in the market.

  • Support most 1D, 2D, GS1 Databar codes.
  • Good performance on both display and printed label reading.
  • Communication Interface : USB wired, wireless 2.4G or Bluetooth 4.2.
  • 2.4G RF wireless transmission, automatic frequency hopping and anti-interference, the effective transmission distance in open space can reach >= 60 meters. With Bluetooth 4.2 connection reach up to 30m in open space.

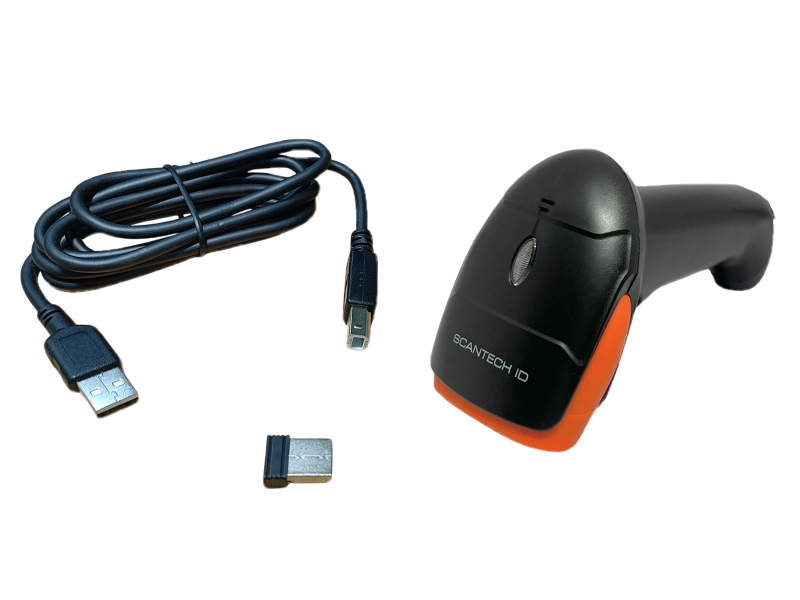

  • IG221 scanner is built in both 2.4G RF and Bluetooth, equipped with a type-C charge cable and a 2.4G RF receiver dongle.

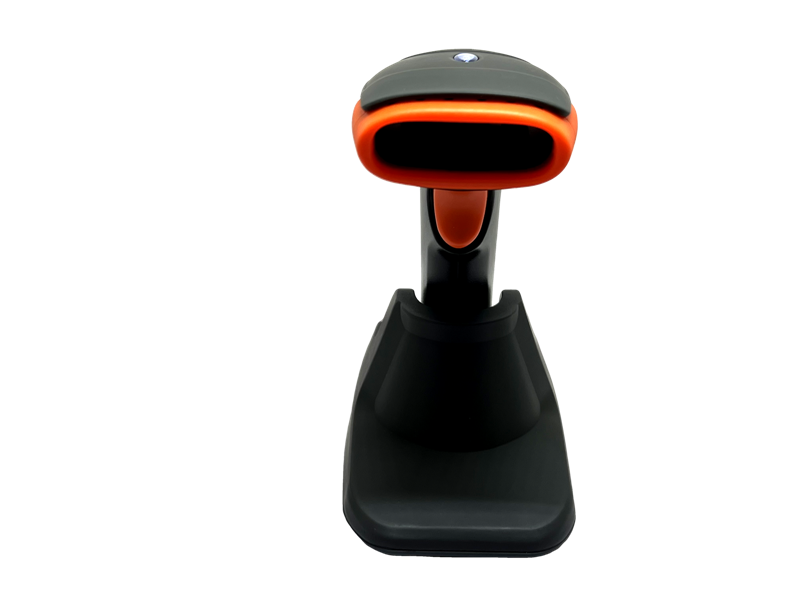

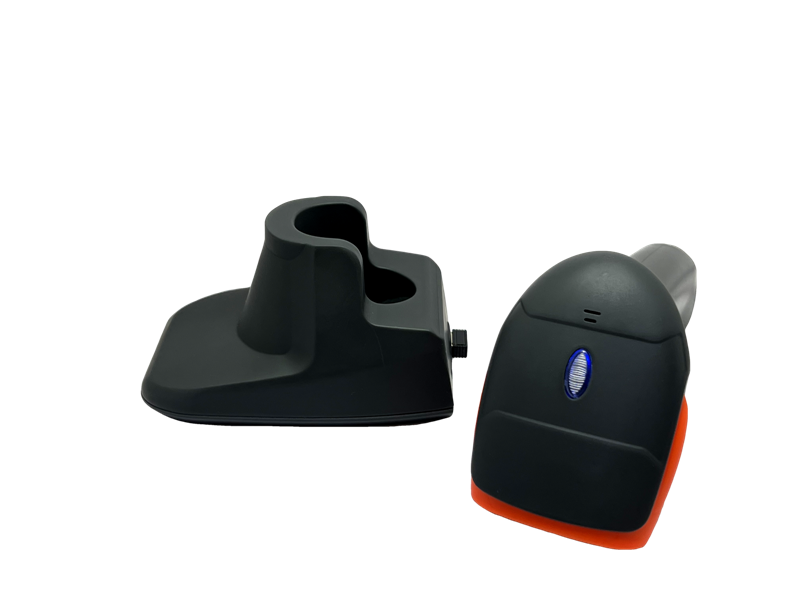

  • IG222 scanner is built in both 2.4G RF and Bluetooth, equipped with a charge cradle and a 2.4G RF receiver dongle.
  • 1D Codes
  • 2D Codes
  • GS1

  • IG221 / IG222

    IG221 / IG222

  • Compare to

Tech Specs

System Architecture

Dimensions (WxHxL) Weight
L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） 184.9g (Scanner)/ 113.4g (Cradle)
- - - - - - - L167 x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） - - - - - - - 184.9g (Scanner)/ 113.4g (Cradle)

Environmental

Ambient light
100,000 Lux Max.
- 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight)

Data Inputs

Symbologies Supported
Most 1D and 2D barcodes (please refer to datasheet)
- - - - - Most 1D and 2D barcodes, refer to datasheet Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character. Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character.

Specifications

Material Dimension(WxDxH) Available Color Light Source Filed of View Depth of Field Resolution Scan Rate Pitch Skew Roll Drop Resistance Print Contrast Ratio Sensor
ABS L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） Black body, orange button and windows side White light illumiation, Red dot aimer Horizontal – 36°, Vertical – 28° 320 mm@20mil/0.5mm, PCS90%, Code39 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode Motion toerlance 25cm per second ±5°~60° (±5°) ±5°~60° (±5°) 360° 47.2 inches(120cm) >=25% 640(H) x 480(V) pixels
- - - - ABS ABS ABS ABS - 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm - - - - - Black Black body, orange button and windows side Black body, dark gray button and windows side Black body, dark gray button and windows side - White light LED White light LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° - - - - - - - 420 mm@20mil/0.5mm, PCS90%, Code39 - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode - 60 fps 60 fps (at full resolution) 60 fps (at full resolution) - - - Motion tolerance: 35cm per second - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) - - 5°~60° (±5°) - 5°~50° (±5°) 5°~50° (±5°) 5°~50° (±5°) ±5°~55° (±5°) - - - - 360° 360° 360° 360° - 59.05 inches (150cm) drop on concrete surface - 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.24 inches (120cm) 47.24 inches (120cm) 47.2 inches(120cm) - PCS30%@5mil/0.127mm - PCS25% PCS25% >=25% >=PCS15% ≥15% - - - - 640(H) x 480(V) pixels 640(H) x 480(V) pixels 1280(H) x 800(V) pixels 1280(H) x 800(V) pixels

Weight

Body weight
184.9g (Scanner)/ 113.4g (Cradle)
- - Approx. 160g / 5,65 oz - - - - -

Wireless Characteristics

Wireless Standard Battery Recharge Time Scan Per Charge Radio Transmission Range
2.4GHZ（ISM frequency band）, Bluetooth 4.2 Li-Ion 3.7V/2000mA Approx. 7 hours (5V@1000mA) >= 12 hours in continuous read >= 60m line of sight for 2.4G RF, up to 30m for Bluetooth 4.2
- - HID and SPP profile supported - - - - 2.4GHZ（ISM frequency band）, Bluetooth 4.2 - - Li-ion 3.7V / 2600 mAh - - - - Li-Ion 3.7V/2000mA - - Approx. 5 hours - - - - Approx. 7 hours (5V@1000mA) - - 20,000 times in continuous read - - - - >= 12 hours in continuous read - - - - - - - >= 60m line of sight for 2.4G RF, up to 30m for Bluetooth 4.2
