IG820BT

Area Imager Barcode Scanner

IG820BT
IG820BT
IG820BT
IG820BT
  • IG820BT
  • IG820BT
  • IG820BT
  • IG820BT

Features

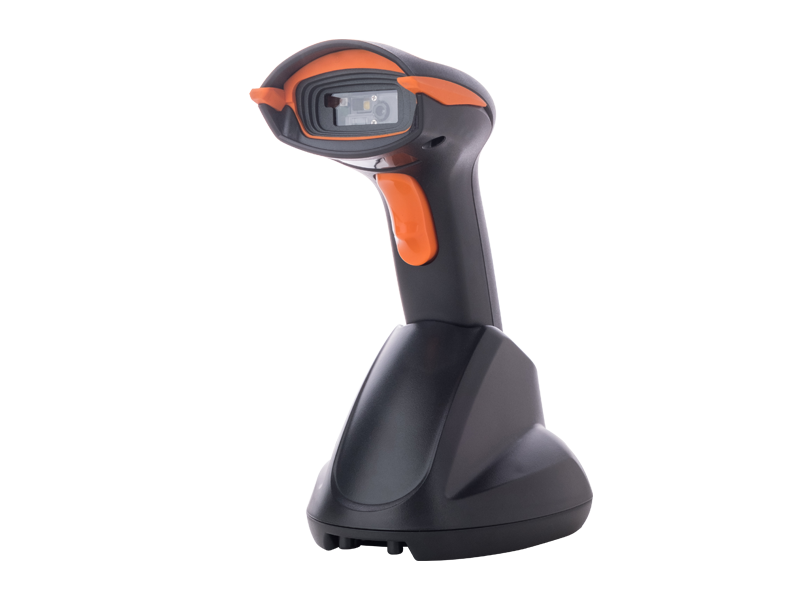

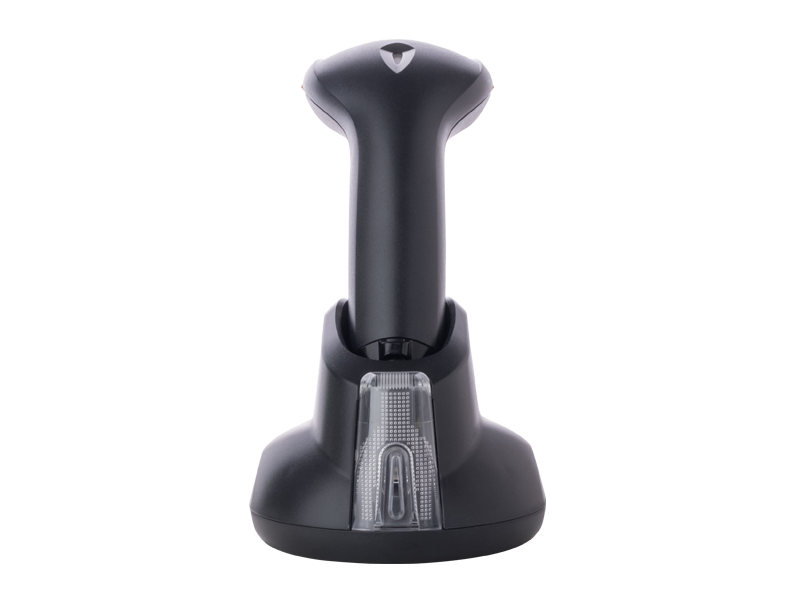

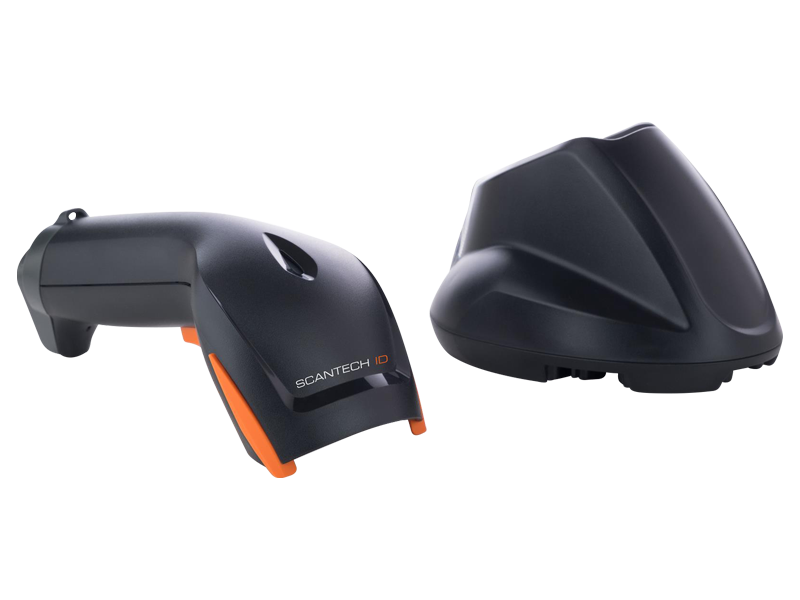

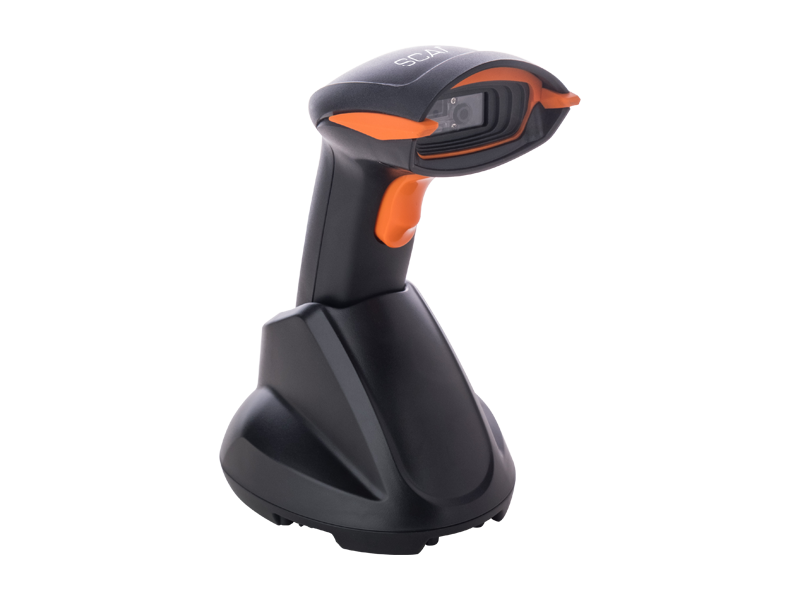

IG820BT is a wireless gun-type 2D bar code scanner, has most modern design with rugged casing and supports IP42 sealing protection, which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate to user environment. An optional stand can be ordered to facilitate hand-free reading application. With its unmatched performance for the majority of 1D and 2D bar codes increasing your productivity. It supports barcode scanning with up to 250mm reading depth for the majority of 1D, 2D bar codes and GS1 DataBar™ codes. IG820BT’s out of range or batch transmission mode with memory capacity stores up to 30,000 inputs of EAN13 barcodes. Its Bluetooth wireless transmission range is up to 80m/262.47 ft. in line of open sight, supports both SPP and HID profiles can easily pair up with other Bluetooth compatible mobile equipment . With its Intelligent Activation, it automatically switches over from button trigger mode to auto-sense mode while it is placed into charging cradle. IG820BT is a high performance barcode scanner which provides customers with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.

  • Support 1D, 2D and GS1 Databar codes.
  • Good reading performance, e.g. good reading of QR code in 30% damage or even one finder pattern is missing.
  • Good performance on both display and printed label reading.
  • Support automatic sense reading and is able to read under 0 Lux dark environment.
  • Support multiple interface options, USB HID, Virtual COM and RS-232.
  • Designed as IP42 sealing protection.
  • With intelligent activation, it automatically switches over to automatic-sense reading while it is placed into the cradle.
  • Both contact and air 16KV Electro-Static discharge.
  • Vibration when scanning (optional)
  • 1D Codes
  • 2D Codes
  • GS1

  • IG820BT

    IG820BT

  • Compare to

Tech Specs

Environmental

Operating temperature Storage temperature Humidity Ambient light
0°C to 50°C (32°F to 122°F) -20°C to 70°C (-4°F to 158°F) 20% to 95% (Non-condensing) 100,000 Lux Max.
- - - - -20 °C to 50 °C (-4 °F to 122 °F ) -20 °C to 50 °C (-4 °F to 122 °F ) - -20 °C to 50 °C (-4 °F to 122 °F ) -20°C to 50°C ( -4°F to 122°F ) -10 °C to 50 °C (14 °F to 122 °F ) - - - - - -20 °C to 60 °C (-4 °F to 140 °F ) -20 °C to 60 °C (-4 °F to 140 °F ) - -20 °C to 60 °C (-4 °F to 140 °F ) -40°C to 60°C ( -40°F to 140°F ) -20 °C to 70 °C (-4 °F to 158 °F ) - - - - - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) 20% to 95% (Non-condensing) - - - 100,000 Lux Max 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight) 100,000 Lux Max. 100,000 Lux Max.

Specifications

Dimension(WxDxH) Light Source Filed of View Resolution Scan Rate Pitch Skew Indicators Sealing
73.5 mm W x 76.2mm H x 173 mm L White light LED Horizontal – 55°, Vertical – 35° 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 60 fps (at full resolution) 5°~60° (±5°) 5°~60° (±5°) Beeper and LED IP42 water and dust protection
- - 65.01 mm W x 168.01 mm D x 54.92 mm H 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） L167x W70 x H88mm - 172 x 67 x 87mm 172 x 67 x 87mm - - White light LED White light LED White light illumination, Red aimer White light illumination, Red dot aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer White light illumiation, Green aimer White light illumiation, Green aimer - - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° Horizontal – 45°, Vertical – 36° Horizontal – 45°, Vertical – 36° - - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode 1D: 3mil/0.076mm PCS90% Code39, 2D: 7mil/0.18mm PCS90% QRCode 1D: 3mil/0.076mm PCS90% Code39, 2D:7mil/0.18mm PCS90%, QRCode - - 60 fps 60 fps (at full resolution) - - Motion toerlance 25cm per second - Motion tolerance: 35cm per second 60 fps 60 fps - - - - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~60° (±5°) ±5°~60° (±5°) - - - - 5°~50° (±5°) 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~55° (±5°) 5°~60° (±5°) ±5°~60° (±5°) - - - - Beep and LED Beep and LED - Beep and LED Beeper and LED Beeper and LED Beeper and LED - - IP41 water and dust protection IP42 water and dust protection - - - - - - -

Weight

Body weight
Approx. 160g / 5,65 oz
- - - - - - 184.9g (Scanner)/ 113.4g (Cradle) - - Approx. 220g / 7,76 oz (include cable) Approx. 195g/6.88oz

Wireless Characteristics

Wireless Standard Battery Recharge Time Scan Per Charge
HID and SPP profile supported Li-ion 3.7V / 2600 mAh Approx. 5 hours 20,000 times in continuous read
- - - - - - 2.4GHZ（ISM frequency band）, Bluetooth 4.2 - 2.4GHZ（ISM frequency band）, Bluetooth 4.2 - - - - - - - - Li-Ion 3.7V/2000mA - Li-Ion 3.7V/2000mA - - - - - - - - Approx. 7 hours (5V@1000mA) - Approx. 7 hours (5V@1000mA) - - - - - - - - >= 12 hours in continuous read - >= 12 hours in continuous read - -

Electrical Characteristics

Interface Power
RS232, USB (HID, Virtual COM), KBW DC 5V
- - RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM) - USB or RS-232, cable is non-replaceable - Support USB HID, Virtual COM and RS-232 interfaces. - - - - - DC 5V DC 5V - - - - - 5V Li-Ion 3.7V/2000mA
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue LED and Beeper Indicator Specification
Download Download Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • P/N0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-

  2. Battery-600/700 Series

    • Battery-600/700 Series
    • P/N0112-85A0051
    • RemarkLithium Rechargeable Battery 3.7V 2600mAh
    • Color-

  3. Cable-CHK-600/700 Cradle-RS232(Black)

    • Cable-CHK-600/700 Cradle-RS232(Black)
    • P/N0114-SG70021
    • RemarkRS-232 Interface cable for Cradle, DB9F RS232+RJ45 10P Black color length 1.5m
    • ColorBlack

  4. Cable-CHK-600/700 Cradle-USB(Beige, with Shielding)

    • Cable-CHK-600/700 Cradle-USB(Beige, with Shielding)
    • P/N0114-SG70061
    • RemarkSG700BT Cradle USB A TYPE MALE +RJ45 10P beige L=1500mm (RJ45 w/ shielding)
    • ColorBeige

  5. Cable-CHK-600/700 Cradle-USB(Black)

    • Cable-CHK-600/700 Cradle-USB(Black)
    • P/N0114-SG70051
    • RemarkUSB interface cable for Cradle, USB A TYPE MALE +RJ45 10P Black color Length 1.5m
    • ColorBlack

  6. Cable-CHK-Cradle-PS/2(Black)

    • Cable-CHK-Cradle-PS/2(Black)
    • P/N0114-G501121
    • Remarkinterface cable for Cradle, KBW RJ45 10PFLAT HEAD+MD6M+MD6F straight cable black color length 1.5m
    • ColorBlack

  7. Stand-600 Series

    • Stand-600 Series
    • P/N7184110201D0000
    • RemarkStand for SG6xx/LG6xx/IG6xx Series
    • ColorBlack
