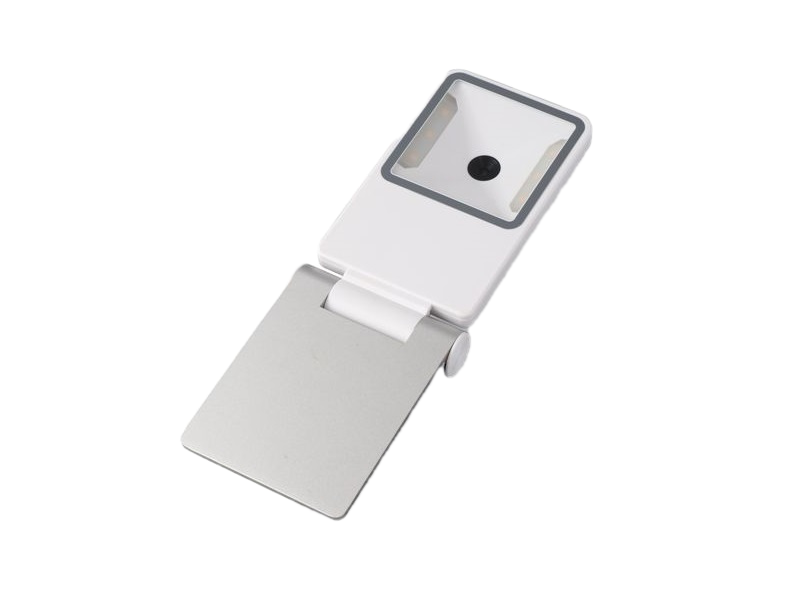

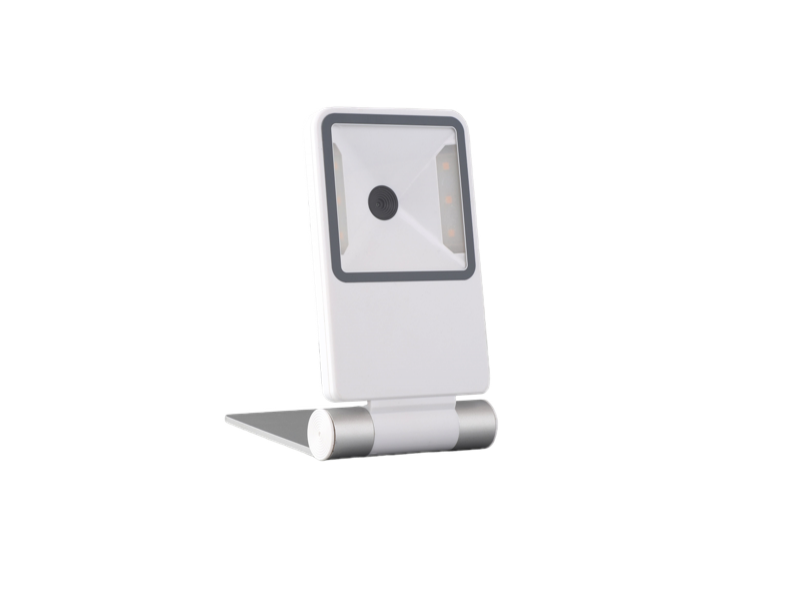

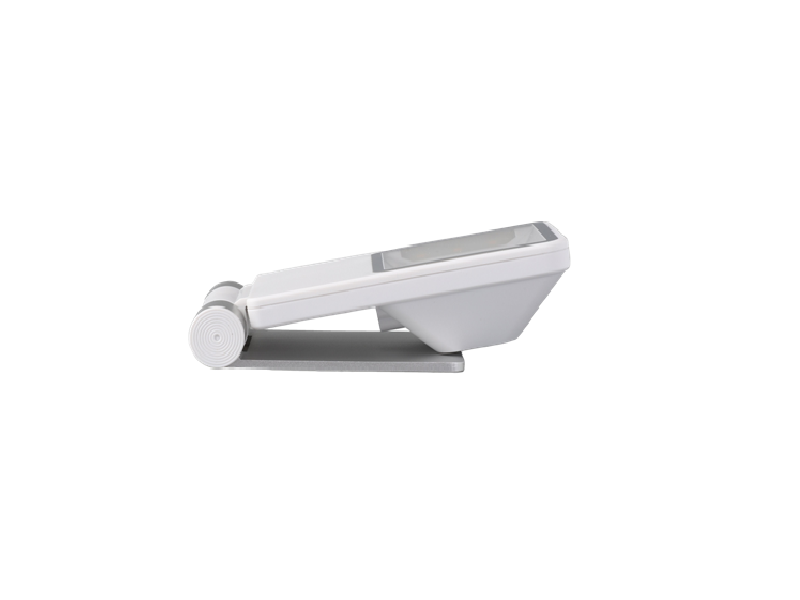

SLIM S-9080i

Foldable Desktop 2D Barcode Scanner

SLIM S-9080i
SLIM S-9080i
SLIM S-9080i
SLIM S-9080i
  • SLIM S-9080i
  • SLIM S-9080i
  • SLIM S-9080i
  • SLIM S-9080i

Features

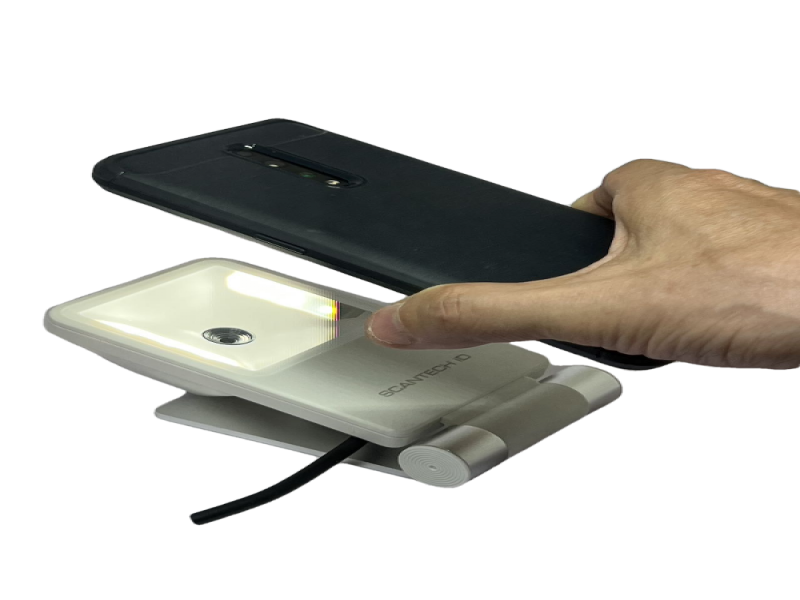

The SLIM series is a foldable, slim shape, omni-directional presentation or face-up scanning barcode scanner engineered to decode all standard 1D and 2D barcodes. Its revolutionary imaging technology is housed as in an elegant, stylish, yet durable design. Its ultra-thin, large-angle folding design makes it the ideal solution for space-constrained environments. With the SLIM S-9080i, you get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product or mobile bar codes on the screen of a mobile phone, and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. The SLIM provides all the features you need to keep your workers productive; intuitive and fast reading performance; true point-and-shoot scanning simplicity — no need to align bar code and scanner. You can fold it to any scanning angle as a presentation scanner, even set it as face-up scan to accommodate to your application.

  • Scan most 1D and 2D bar codes on paper, mobile phones displays.
  • With the SLIM shape and small foot-print design can fit in the most space constrained areas.
  • Scanner head can be forward and backward folded in a large angle range to accommodate to your application.
  • Lightweight and ergonomic design, best cost-effective investment.
  • 1D Codes
  • 2D Codes
  • GS1

  • SLIM S-9080i

    SLIM S-9080i

  • Compare to

Tech Specs

Environmental

Operating temperature Storage temperature Humidity Ambient light Sealing Protection
-20°C to 40°C ( -4°F to 104°F ) -40°C to 70°C ( -40°F to 158°F ) 5% to 95% (Non-condensing) 100,000 Lux Max. (Sunlight) IP52
- - -20°C/-4°F to 50°C/122°F - - - -20°C to 50°C ( -4°F to 122°F ) - - - -40°C/-40°F to 60°C/140°F - - - -40°C to 60°C ( -40°F to 140°F ) - - - 5% to 95% (Non-condensing) - - - 5% to 95% (Non-condensing) - - Up to 100,000 Lux (direct sunlight) 100,000 Lux Max. (Sunlight) Up to 100,000 Lux (direct sunlight) - - 100,000 Lux Max. (Sunlight) - - - - - - - - -

Specifications

Material Dimension(WxDxH) Available Color Light Source Filed of View Resolution Scan Rate Pitch Skew Roll Indicators Drop Resistance Print Contrast Ratio
ABS Plastic 77 x 100 x 123 mm White White Light LED Horizontal – 38°, Vertical – 30° 1D: 4.0 mil/0.1mm, 2D: 6.67mil/0.17mm 120 scans per second ±60°(from front to back) ±60°(from plane parallel to symbol(side- to-side)) 360° Beep 47.24 inches(120cm) drop on concrete surface >= 20%
- - ABS - - - ABS Plastic - - 152x152x90.2mm 152mm(W) x 153.2mm(H) x 84.12mm(L) 152x152x91mm 97.89 x 74.89 x 137.64 mm 97.89 x 74.90 x 137.94 mm 96.7 x 86.7 x 143.6 mm - - - - - Black - Black - - Visible red light 625nm LED Visible red light 625nm LED 625±10nm Red LED Visible White LED Visible White LED Red LED - - 80° Horizontal, 55° Vertical Horizontal 62°× Vertical 41° Horizontal: 40°, Vertical: 25° Horizontal – 55°, Vertical – 35° (dual faces) Horizontal – 55°, Vertical – 35° Horizontal – 41°, Vertical – 31° - - 3 mil / 0.076mm 1280 (H) x 800 (V) pixels 1D: 4mil/0.1mm, 2D: 8mil/0.2mm 1280 (H) x 800 (V) pixels; 3.0 mil (Code 39), 8 mil (QR Code) 3.0 mil (Code 39), 8 mil (QR Code) 640 (H) x 480 (V) pixels, ≥5mil/0.127mmPCS90%,CODE 39) - - - - - - 60 scans per second - - - ±60° (from front to back) ±70° (from front to back) - - - - - - ±60° (from plane parallel symbol side-to-side) ±65° (from plane parallel symbol side-to-side) - - - - - - ±180° ±180° - - - - - - Beeper and LED Beeper and LED Beeper and LED Beep and LED (Standby Orange, Good read Blue) Beep and LED Beep and LED - - - - - - - 47.24 inches(120cm) drop on concrete surface - - - ≥20% 25% - - >= 25% -

Weight

Body weight
Approx. 254g (with cable)
- - Approx. 508.6g（without cable) - - - Approx. 270g w/o cable -

Electrical Characteristics

Power Stand by (Typ.) Operation (Typ.)
DC Adaptor +5V ±5% <210mA <280mA
- DC 5V @2A DC 5V DC 5V @2A DC 5V @2A DC 5V @2A DC 5V - - - - - - - - - - - 280mA (work) - - - 280mA(work) -
Configuration Quick Guide Datasheet
Download Download
