Features

This barcode scanner is a brand new compact design which is especially for the application in ticketing, stocktaking, catering or logistic market. With its tiny and lightweight design, it can be easily carried in pocket or along with for mobility application. As the tiny compact body, the housing is designed with IP54 water and dust protection rating, and to be 1.5m dropping resistance. With its 0.96" display and 3 buttons, customers can easily operate and configure it. In addition, it can easily connect to the most mobile devices via Bluetooth technology on android and iOS system. The scanned data can be immediately transferred to the corresponding application programs or stored in the built-in memory. The scanner has built-in a large memory size of 8M bytes for user data storage that can save over 100,000 items of 50 bytes barcode data. The scanner absolutely provides plenty of memory requirements. With several high performance bar code scanning modules as option, linear imager CCD (MB300C), laser ( MB300L) or area imager 2D (MB300I), the scanning module delivers excellent decoding performance and can read most 1D, GS1 databar codes or 2D barcodes. The scanner is absolutely a high performance portable barcode scanner that provides the most cost-effective solutions in the market. It is perfectly suitable and definitely the best choice for the application with mobile devices.

  • With 0.96” OLED display
  • Lightweight and easy to carry
  • Easy control with 3 scrolling buttons
  • Instant response by a vibration
  • Rechargeable Li-Poly battery with a usage compartment for easy replacement
  • Over 10,000 times scanning per fully recharged of Li-Poly battery
  • Data transmission via Bluetooth V2.1 Class 2 technology, ranges up to 10m
  • Supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipment or systems
  • With high performance 1D- CCD/Laser or 2D area imager bar code scanning module as option
  • Data storage of 8 MB memory can save over 100,000 items of 50 bytes bar code data
  • Reliable design to fulfill 1.5m drop resistance and IP54-Rated sealing protection

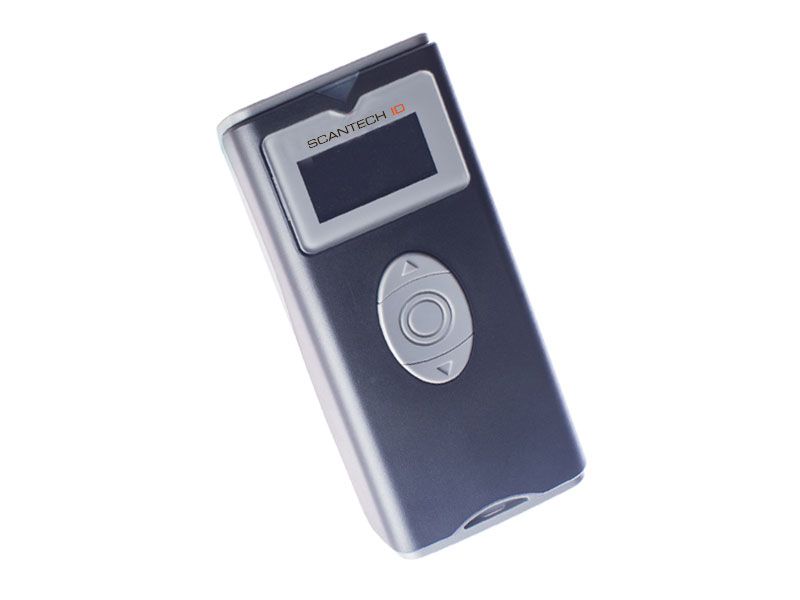

  • MB300

    MB300
  • Compare to

Tech Specs

System Architecture

Memory RAM Power Supply
8MB (over 100,000 scans of 50 bytes barcode) 90x41x23.4mm
- 512MB - - - - - - - - - - - - - - - 8MB (over 100,000 scans of 50 bytes barcode) - - - 1GB - - - - - 1GB - - - - - 1GB or 2GB LPDDR3 - - - 512MB or higher - - - - DC 5V/2.0A power adapter or PoE - - - 81 x 61 x 192mm - DC+5V±5% - - DC 12V - - - - - - 90x41x23.4mm - - - 193 x 176 x 85mm - - - AC Adapter 57W (19V / 3A) - 193 x 176 x 85mm - - - - - DC 12V/2A 24W Power Adaptor/Power over Ethernet (PoE) IEEE 802.3af (optional)/Power over Ethernet (PoE+) IEEE 802.3at (optional) - - - - - - -

Specifications

Available Color Indicators Drop Resistance IP Rating Display Engine Battery Battery Charging
Black cover and dark gray bottom cases LED x 1, Beeper x 1, Vibrator x1 1.5m IP54 0.96" OLED (128x64 dots, monochrome) 1D Linear Imager: MB300C, 2D: MB300i Lithium-Polymer Battery (3.7V, 500mAh) via Micro USB
- - - - - - - - - - - - - - - - - Black cover and dark gray bottom cases - - - - - - - - - - - - - - - Custom color on front bottom cover as option - - - - - - - - - Beeper - Good read beep - Beeper - - - - - - - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - Beeper - Beeper - - - - - - Beeper and LED - - - Beeper and LED - - - - - - - - - - - - - - - - - - - - - - 1.5m - - - - - - - MIL-STD-810G (Multiple 5'/1.2m Drops) 26 times all corners and sides with single tablet while operating - - - - - - - - - - - - - - 50-500mm/sec - - N/A - - - - - - - - - - - - - - IP54 - - - - N/A - - - - - - - - IP65 - - - IP65 - - - - - - - - - - - - - - - - - - - - - - N/A - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1D Linear Imager: MB200C, 2D: MB200i - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Lithium-Polymer Battery (3.7V, 500mAh) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - via Micro USB - - - - - - - - - - - - - - - - - - - - - - -
Configuration Symbology-MB300C/MB300L/MB200C/MB200L Configuration Symbology-MB300i/MB200i Datasheet E-Catalogue LED and Beeper Indicator Quick Start Guide – MB200 series Specification
Download Download Download Download Download Download Download
