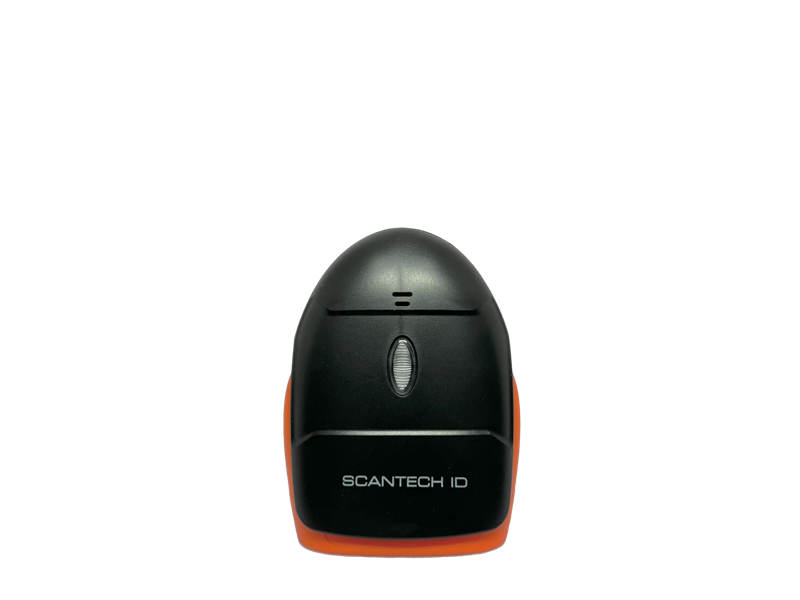

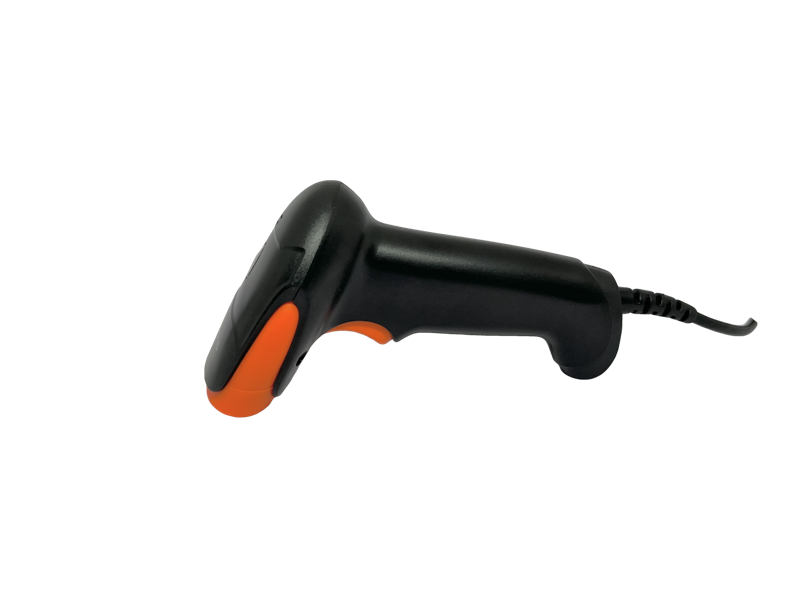

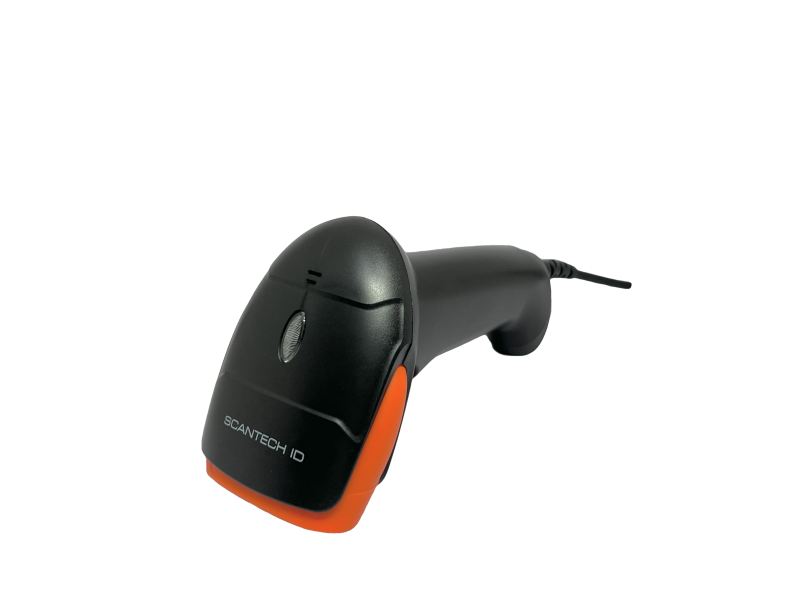

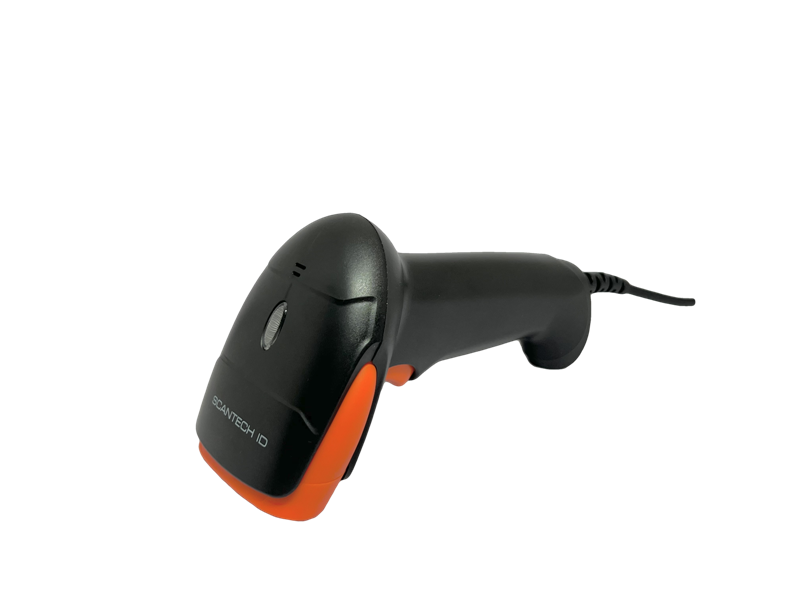

IG220

Economical 2D Barcode Scanner

IG220
IG220
IG220
IG220
IG220
  • IG220
  • IG220
  • IG220
  • IG220
  • IG220

Features

IG220 is a general purpose, economical yet good performance 2D barcode scanner which is designed especially for retail, logistic and warehousing management market. It supports USB or RS232 interface with non-replaceable interface cable. IG220 has modern design and good performance for the majority of 1D and 2D bar codes reading to increase your productivity. It can easily read the barcodes on label, display and other media.An optional stand can be ordered to facilitate hand-free reading application.

  • Support most 1D, 2D codes.
  • Good performance on both display and printed label reading.
  • Support USB HID, Virtual COM and RS-232 interfaces.
  • Interface cable is non-replaceable.

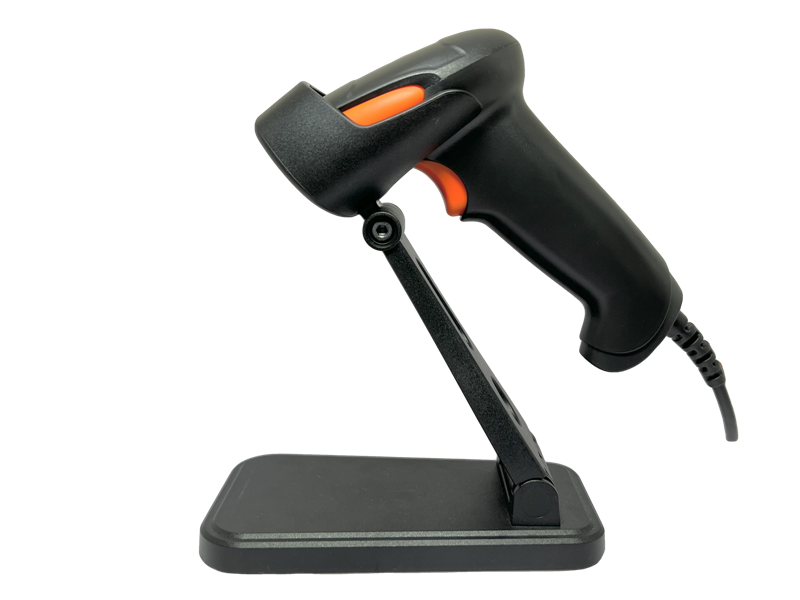

  • An optional stand can be ordered to facilitate hand-free reading application.
  • 1D Codes
  • 2D Codes
  • GS1

  • IG220

    IG220

  • Compare to

Tech Specs

Environmental

Operating temperature Storage temperature Humidity Ambient light
-20 °C to 50 °C (-4 °F to 122 °F ) -20 °C to 60 °C (-4 °F to 140 °F ) 5% to 95% (Non-condensing) 100,000 Lux Max.
- - 0°C to 50°C (32°F to 122°F) - -20 °C to 50 °C (-4 °F to 122 °F ) - -20 °C to 50 °C (-4 °F to 122 °F ) -20°C to 50°C ( -4°F to 122°F ) - - -20°C to 70°C (-4°F to 158°F) - -20 °C to 60 °C (-4 °F to 140 °F ) - -20 °C to 60 °C (-4 °F to 140 °F ) -40°C to 60°C ( -40°F to 140°F ) - - 20% to 95% (Non-condensing) - 5% to 95% (Non-condensing) - 5% to 95% (Non-condensing) 5% to 95% (Non-condensing) - 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. 100,000 Lux Max. (Sunlight)

Data Inputs

Symbologies Supported
Most 1D and 2D barcodes, refer to datasheet
- - - - - Most 1D and 2D barcodes (please refer to datasheet) Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character. Support most 1D, 2D codes, GS1 databar, Post code, Composite codes and OCR-B Character.

Specifications

Material Dimension(WxDxH) Available Color Light Source Filed of View Resolution Pitch Skew Roll Indicators Stand by Operation Drop Resistance Print Contrast Ratio Sensor
ABS L167x W70 x H88mm Black body, orange button and windows side White light illumination, Red dot aimer Horizontal – 36°, Vertical – 28° 1D: 4mil/0.1mm PCS90% Code39, 2D: 8mil/0.2mm PCS90% QRCode 5°~50° (±5°) 5°~50° (±5°) 360° Beep and LED 57 mA < 130 mA 47.24 inches (120cm) >=25% 640(H) x 480(V) pixels
- - - - ABS ABS ABS ABS - 65.01 mm W x 168.01 mm D x 54.92 mm H 73.5 mm W x 76.2mm H x 173 mm L 73.50 mm W x 173 mm D x 76.2 mm H 150x 70 x 95mm L167x W70 x H88mm（Scanner） L123 x W88.5 x H70 （Cradle） L167x W70 x H88mm - - - - - Black Black body, orange button and windows side Black body, dark gray button and windows side Black body, dark gray button and windows side - White light LED White light LED White light LED White light illumination, Red aimer White light illumiation, Red dot aimer White light illumination, Red bar aimer White light illumiation, Red bar aimer - Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 55°, Vertical – 35° Horizontal – 36°, Vertical – 28° Horizontal – 36°, Vertical – 28° Horizontal – 35°, Vertical – 27° Horizontal – 35°, Vertical – 27° - 3mil/0.076mm@PCS90% Code39, 8mil/0.2mm@PCS90% QR Code 3mil/0.076mm@PCS90% Code39,5mil / 0.127mm@ PDF417 3mil/0.076mm@PCS90% Code39, 5mil/0.127mm@PDF417 1D: 4mil/0.1mm, 2D: 6.67mil/0.17mm 1D: 4mil/0.1mm PCS90%, CODE39, 2D: 8mil/0.2mm PCS90%, QRCode 1D: 3mil/0.076mm, 2D: 7mil/0.18mm 1D: ≥3mil/0.076mm PCS90%,CODE 39, 2D: 7mil/0.18mm PCS90%, QRCode - - 5°~60° (±5°) - 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~60° (±5°) - - 5°~60° (±5°) - 5°~50° (±5°) ±5°~60° (±5°) 5°~50° (±5°) ±5°~55° (±5°) - - - - 360° 360° 360° 360° - - Beeper and LED - Beep and LED - Beep and LED Beeper and LED - - - - 57 mA - 57 mA - - - - - < 130 mA - < 130 mA - - 59.05 inches (150cm) drop on concrete surface - 70.86 inches(180cm) drop on concrete surface 47.24 inches (120cm) 47.2 inches(120cm) 47.24 inches (120cm) 47.2 inches(120cm) - PCS30%@5mil/0.127mm - PCS25% PCS25% >=25% >=PCS15% ≥15% - - - - 640(H) x 480(V) pixels 640(H) x 480(V) pixels 1280(H) x 800(V) pixels 1280(H) x 800(V) pixels

Electrical Characteristics

Interface
USB or RS-232, cable is non-replaceable
- RS232, USB (HID, Virtual COM) RS232, USB (HID, Virtual COM), KBW RS232, USB (HID, Virtual COM) - - Support USB HID, Virtual COM and RS-232 interfaces. -
Configuration Quick Guide Datasheet
Download Download
