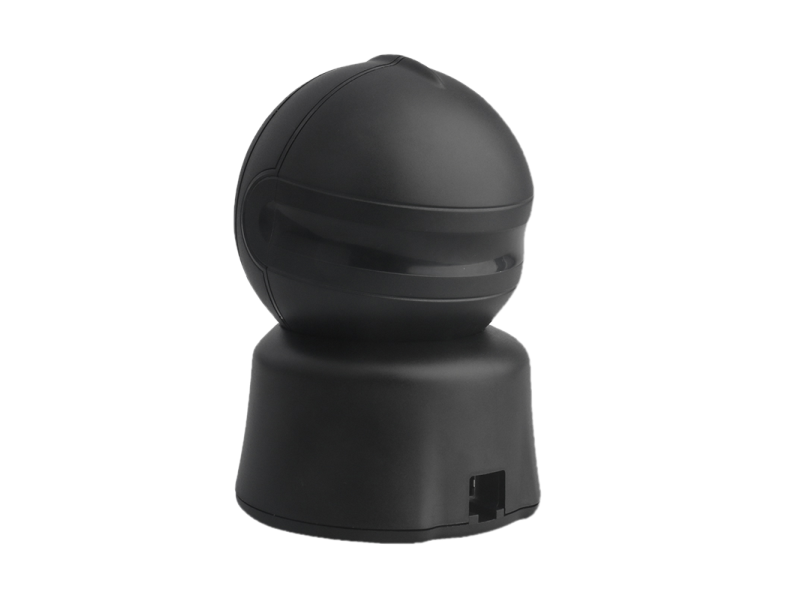

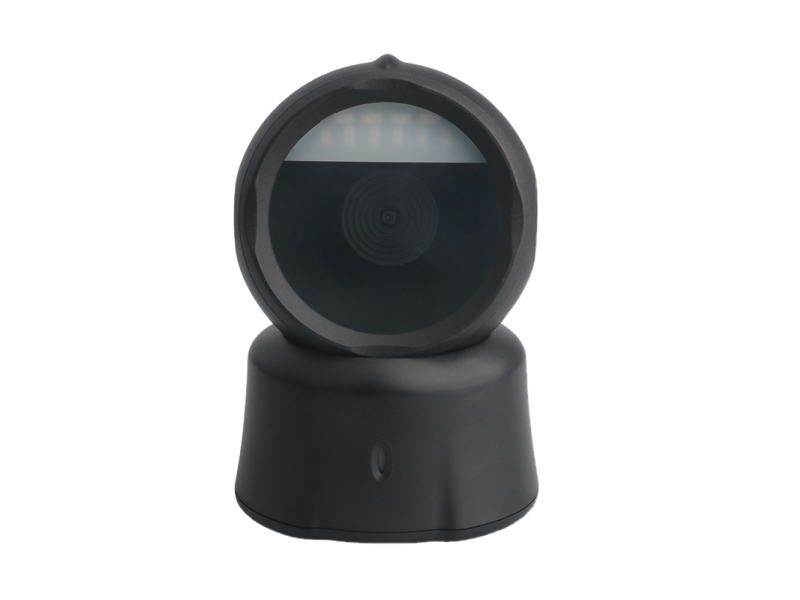

CUBAL C-7080i

Compact Size Desktop 2D Barcode Scanner

CUBAL C-7080i
CUBAL C-7080i
  • CUBAL C-7080i
  • CUBAL C-7080i

Features

The CUBAL is a multi-form, compact size, omni-directional presentation 2D barcode scanner engineered to decode all standard 1D and 2D barcodes. Its revolutionary imaging technology is housed in an elegant, stylish, yet durable design. The compact size and small foot-print design, makes it the ideal solution for space-constrained environments. With the CUBAL C-7080i, you get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product or mobile bar codes on the screen of a mobile phone, and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. The CUBAL provides all the features you need to keep your workers productive; intuitive and fast reading performance; true point-and-shoot scanning simplicity — no need to align bar code and scanner; and hands-free and handheld flexibility. The CUBAL can be used in high-flow retail cashier environment and it’s suitable for supermarkets, department stores, onvenience stores, drug stores, tobacco and grocery stores.

  • Scans most 1D and 2D bar codes on paper, mobile phones and computer displays.
  • With its compact size and small foot-print can fit in the most space constrained areas.
  • Lightweight and ergonomic design, best cost-effective investment.
  • 1D Codes
  • 2D Codes
  • GS1

  • CUBAL C-7080i

    CUBAL C-7080i

  • Compare to

Tech Specs

Environmental

Operating temperature Storage temperature Humidity Ambient light
-20°C to 50°C ( -4°F to 122°F ) -40°C to 60°C ( -40°F to 140°F ) 5% to 95% (Non-condensing) 100,000 Lux Max. (Sunlight)
- - -20°C/-4°F to 50°C/122°F - - - -20°C to 40°C ( -4°F to 104°F ) - - - -40°C/-40°F to 60°C/140°F - - - -40°C to 70°C ( -40°F to 158°F ) - - - 5% to 95% (Non-condensing) - - - 5% to 95% (Non-condensing) - - Up to 100,000 Lux (direct sunlight) 100,000 Lux Max. (Sunlight) Up to 100,000 Lux (direct sunlight) - - 100,000 Lux Max. (Sunlight) -

Specifications

Material Dimension(WxDxH) Available Color Light Source Filed of View Resolution Indicators Drop Resistance Print Contrast Ratio Readable Barcodes
ABS Plastic 96.7 x 86.7 x 143.6 mm Black Red LED Horizontal – 41°, Vertical – 31° 640 (H) x 480 (V) pixels, ≥5mil/0.127mmPCS90%,CODE 39) Beep and LED 47.24 inches(120cm) drop on concrete surface >= 25% 1D Symbologies UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Tepepen, GS1 Composite etc. 2D Symbologies QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Chinese ID Card OCR, etc
- - ABS - - - ABS Plastic - - 152x152x90.2mm 152mm(W) x 153.2mm(H) x 84.12mm(L) 152x152x91mm 97.89 x 74.89 x 137.64 mm 97.89 x 74.90 x 137.94 mm 77 x 100 x 123 mm - - - - - Black - White - - Visible red light 625nm LED Visible red light 625nm LED 625±10nm Red LED Visible White LED Visible White LED White Light LED - - 80° Horizontal, 55° Vertical Horizontal 62°× Vertical 41° Horizontal: 40°, Vertical: 25° Horizontal – 55°, Vertical – 35° (dual faces) Horizontal – 55°, Vertical – 35° Horizontal – 38°, Vertical – 30° - - 3 mil / 0.076mm 1280 (H) x 800 (V) pixels 1D: 4mil/0.1mm, 2D: 8mil/0.2mm 1280 (H) x 800 (V) pixels; 3.0 mil (Code 39), 8 mil (QR Code) 3.0 mil (Code 39), 8 mil (QR Code) 1D: 4.0 mil/0.1mm, 2D: 6.67mil/0.17mm - - Beeper and LED Beeper and LED Beeper and LED Beep and LED (Standby Orange, Good read Blue) Beep and LED Beep - - - - - - - 47.24 inches(120cm) drop on concrete surface - - - ≥20% 25% - - >= 20% - - - 1D Symbologies UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5（IATA 2 of 5）, Codabar（NW-7）, MSI, GS1 Databar(Omnidirectional, Limited, Expanded), China Post, Tepepen, GS1 Composite.; 2D Symbologies QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Chinese ID Card OCR. - - - - -

Weight

Body weight
Approx. 270g w/o cable
- - Approx. 508.6g（without cable) - - - Approx. 254g (with cable) -

Electrical Characteristics

Interface Power Operation (Typ.)
USB or RS-232 DC 5V 280mA(work)
- RS232, USB HID or Virtual COM RS-232 or USB( HID or Virtual COM.); cable length 180cm RS232, USB (Virtual COM) RS232, USB (HID or Virtual COM) RS232, USB(HID, Virtual COM) - - - DC 5V @2A DC 5V DC 5V @2A DC 5V @2A DC 5V @2A DC Adaptor +5V ±5% - - - 280mA (work) - - - <280mA -
Datasheet User's Manual
Download Download
