Features

Near field communication (NFC) is a popular technology in recent years, and is becoming a set of standards for smart phones and similar devices to establish radio with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters. RFM811 is a tiny NFC card reader module, which is designed for the applications for handy terminals or custom-built for system integrators. We offer technology documents and SDK to help customers to make their own things easier. Users can easily connect it with either UART or USB interface by through FPC connector.

  • Supports Near Field Communication (NFC) Standards
  • Completely Integrated Protocol Handling for ISO15693, ISO 14443A/B, MIFARE and FeliCa
  • Operation Voltage 5 Vdc
  • Module supports UID reading function, Mifare (APDU command) read/write or ISO 15693 read/write(NDEF format) in diVerent models
  • Standard 50 Ohm Antenna Output Port
  • UART or USB Interface, easy to change between those modes
  • Antenna is option

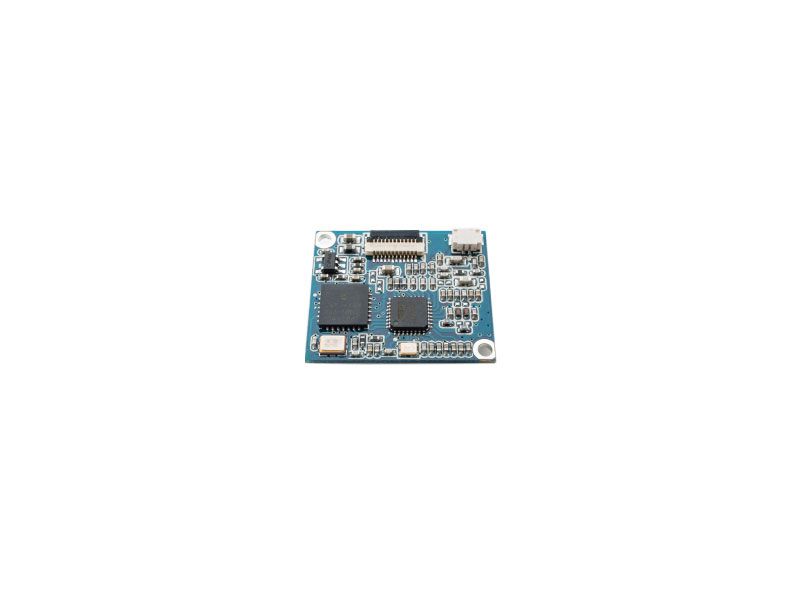

  • RFM811i

    RFM811i
  • Compare to

Tech Specs

Specifications

Dimension(WxDxH) Indicators Standards Data Format Read/Write Command Antenna Mounting Kit
23.5x20x3mm 2 color LED and Beeper ISO15693 UID Reading, Data Reading and Writing binary data APDU Optional N/A
- - - 90x90x17mm - - 50x35x4.5mm - - - - - 2 color LED and Beeper - - 2 color LED and Beeper - - - UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card) MIFARE UID Reading, Data Reading and Writing ISO15693 UID Reading, Data Reading and Writing UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card) MIFARE UID Reading, Data Reading and Writing ISO15693 UID Reading, Data Reading and Writing UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card) MIFARE UID Reading, Data Reading and Writing - ASCII code Binary data binary data ASCII code binary data binary data ASCII code binary data - - APDU APDU - APDU APDU - APDU - - - Built-in antenna (reading distance up to 50mm) - - Antenna included (reading distance up to 50mm) - - - - - Optional mounting bracket for desktop or wall mounting - - N/A - -

Electrical Characteristics

Interface Power
RS232 / USB Virtual COM DC 5V
- RS232 / USB Virtual COM / USB HID RS232 / USB Virtual COM RS232 / USB Virtual COM RS232 / USB Virtual COM / USB HID RS232 / USB Virtual COM RS232 / USB Virtual COM RS232 / USB Virtual COM / USB HID RS232 / USB Virtual COM - - - DC 5V - - DC 5V - -
