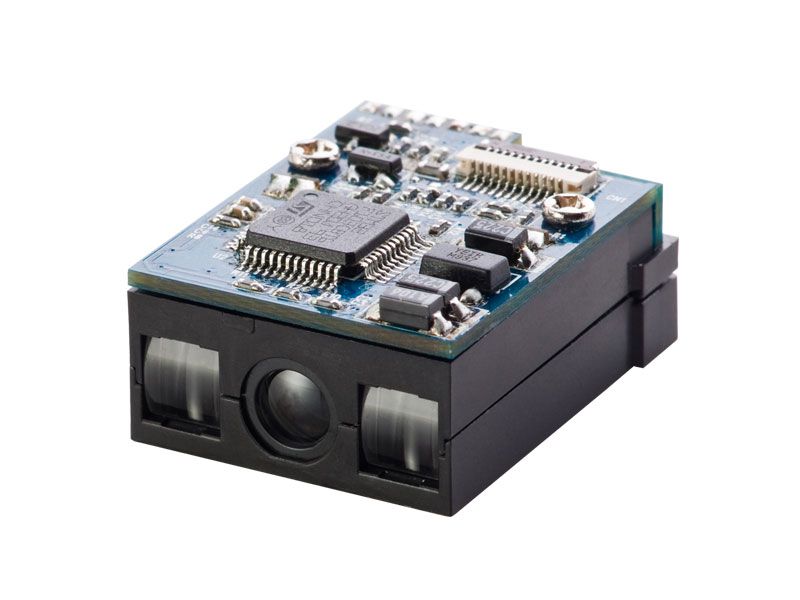

MCR14S

The MCR Series Scan Module is a perfect choice for your OEM design.

MCR14S
  • MCR14S

Features

The MCR Series Scan Module is a perfect choice for your OEM design. The MCR Series brings the benefits of bar code scanning to all types of OEM devices. Now kiosks, medical instruments, diagnostic equipment, lottery terminals, vending machines and countless other appliances can all be equipped with the leading-edge scanning technology and reliability. The MCR Series has been designed to provide the highest scanning performance in the smallest package possible. For added versatility, allowing for fast, cost-effective interchangeability when upgrading or modifying your OEM device for specialized applications. MCR14S is a miniature size and yet long-range CMOS bar code scanning module with high sensitive liner image sensor. As operation under 10,000 LUX ambient light resistance, its cutting-edge smart detection technique design comes with up to 100 scans per second scan speed and up to 250mm reading distance, and aiding in various major bar codes, hand-on software-programming function, this MCR14S is your best choice of 1D type bar code scanning module to be suitable for application where needs a high performance and the reliable operation. The scanner module’s miniature size makes MCR14S ideal for integration into data terminals and other small devices.

  • Miniature size yet long-range CMOS bar code scanning module.
  • Read major 1D bar codes, GS1 Databar linear and stacked bar codes.
  • Support automatic detection and wake up scanner to read.
  • Decoding distance up to 25cm (20mil/0.5mm@code39 pcs90%).
  • Smart Detection, speed up to 100 scans per second.
  • 1D Codes
  • GS1

  • MCR14S

    MCR14S

  • Compare to

Tech Specs

Specifications

Dimension(WxDxH) Light Source Filed of View Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio
25x20x11.5mm 632±5nm Red LED Horizontal: 45° Up to 250mm@20mil/0.5mm, PCS90% 4mil/0.1mm 100 scans ±10% Beeper 25%
- - 69x56x27.7mm - - - - - - - - - - - - - - - - - - - 69x56x27.7mm - - - - - - - Optical module 22.30mm W x 12.0 mm D x 12.0mm H Decoder board 37.0 mm W x 23.4 mm D - - - - 64.6x59.2x30mm - - - - 64.6x59.2x30mm - - - - - - - - - - - - - - - 25x20x11.5mm - - - Platen Size:88.90 mm x 80.01 mm / 3.50” x 3.15” Sensing Area:81.28 mm x 76.30 mm / 3.20” x 3.00” Assembly Dimensions:114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23" - - 632±5nm Red LED - - White light LED - - - - - - - - - - - - - - - - 625±5nm Red LED RED LED/ IR - - - - - - White light LED - - - - 632±5nm Red LED - - - - 625±5nm Red LED - - - 660nm Red LED - - - - 660nm Red LED - - - 660nm Red LED - - 632±5nm Red LED - - - - - - - - - Horizontal – 55°, Vertical – 35° - - - - - - - - - - - - - - - - - - - - - - - - Horizontal -55°, Vertical -35° - - - - - - - - - 1D: 4mil/0.1mm; 2D: 8mil/0.2mm - - - - - - - - - - - - - - - Horizontal: 45° - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - 280mm@20mil/0.5mm, PCS90% - - - - - - - - - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - - - - - - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - Contact Type - - - - Contact Type - - - Contact Type - - Up to 500mm@20mil/0.5mm, PCS90%, Code 39 - - - - - - 0.1mm/4mil - - 3mil/0.076mm@PCS90% Code39,8mil/0.2mm@PCS90% QRCode - - - - - - - - - - - - - - - - 1D: 4mil/0.1mm ;2D: 8mil/0.2mm 5.9mil/0.15mm - - - - - - - - - - - 0.1mm/4mil - - - - - - - - 5mil/0.127mm 0.127mm/5mil UPC/EAN, 0.26/10mil 2D barcode - - - 5mil/0.127mm - - - - - - 4mil/0.1mm - - - 500 ppi, Image:1600 x 1500 pixels - - Smart detection, up to 500 scans 100-1000mm/sec - 60 fps (at full resolution) - - - - - - - - - - - - - - - - 60 images 100-1000mm/sec - - - - - - 60 images per second - - - - Smart detection, up to 500 scans 100-1000mm/sec - - - 60 images 100-1000mm/sec - - 50-500mm/sec - - - - 50-500mm/sec - - - - - - Smart detection, up to 500 scans - - - Min frame rate > 8fps - - Beeper - - Beeper - - - - - - - - - - LED x 1, Beeper x 1, Vibrator x1 - - - - LED x 1, Beeper x 1, Vibrator x1 Beeper - - - - - - - Good read beep - - - - Beeper and LED - - - - Beeper and LED - - - - - - - - - - - - - - - Beeper - - - - - - 30% - - 30%@5mil/0.127mm - - - - - - - - - - - - - - - - 30% - - - - - - - - - - - - 30% - - - - 30% - - - - - - - - - - - - - - - 25% - - - -

Electrical Characteristics

Interface Power
Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB(HID, Virtual COM) DC 5V
- - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - - - - - - - - - - - - a USB or RS-232 wired cable to a host - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - - - - RS232, USB (HID, Virtual COM) - USB 3.0 Type A(Host) x3, USB 3.0 Type C(Device) x1, HDMI x1, Ethernet port x1, Power jack port x 1 - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - RS-232, USB (HID, Virtual COM) TTL/KBW/RS232/USB - - - USBx3,HDMIx1,RS232x1,LANx1(for Ethernet or PoE),GPIO x 2 (2-pin signal output, 2-pin power output) - - - - - - - - - - Module only: UART/USB (HID, Virtual COM) Module with interface board: RS232/USB/KBW - - - USB 2.0 - - DC 5V - - - - - - - - - - - - - - - - - - - DC 5V - - - - - - - - - - - - DC 5V - - - - DC 5V - - - - - - - - - - - - - - - DC 5V - - - USB Host, Voltage Level: 4.40V to 5.25V; 4.4via USB; full scanning > 300mA, typical > 250mA
Configuration Guide Configuration Quick Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue Specification
Download Download Download Download Download Download Download
