Features

Near Field communication (NFC) is a popular technology in recent years, and is becoming a set of standards for smart phones and similar devices to establish radio with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters. The RFR811 is a host-linked contactless card reader developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports MIFARE®, ISO 14443 A and B, ISO15693 and FeliCa cards. The RFR811 is ideal for both secure personal identity veri cation and online micro-payment transactions. Other applications include access control, e-payment, e-ticketing The RFR811 comes with an optional holder with it could mount the reader either on desk or wall, so that users can tap contactless cards or NFC-enabled devices onto the RFR811 with ease.

  • Read/write speed up to 424 kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • Supports Near Field Communication (NFC) Standards
  • Completely integrated protocol handling for ISO 15693, ISO 14443A/B, MIFARE and FeliCa.
  • Built-in anti-collision feature (only 1 tag is accessed at any time)
  • Operation Voltage 5 Vdc.
  • Card mode for card UID reading function, Mifare (APDU command)
  • Peer-to-Peer mode (TBD)
  • RS232 or USB Interface support
  • Peripherals: 2 color LED and buzzer
  • An optional holder with it could mount the reader either on desk or wall

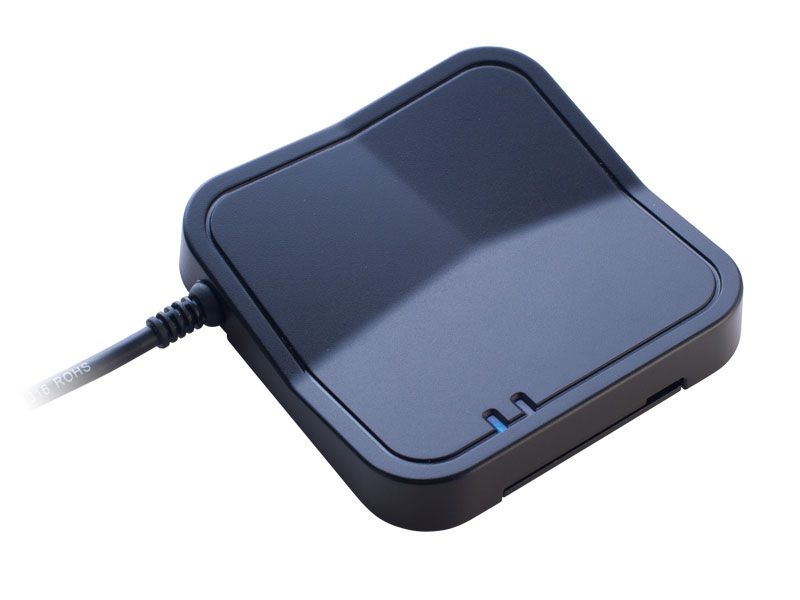

  • RFR811

    RFR811
  • Compare to

Tech Specs

Specifications

Standards Data Format
UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card) ASCII code
- MIFARE UID Reading, Data Reading and Writing ISO15693 UID Reading, Data Reading and Writing UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card) MIFARE UID Reading, Data Reading and Writing ISO15693 UID Reading, Data Reading and Writing UID Reading (ISO/IEC 15693, ISO/IEC 18092 Tag, ISO/IEC 14443A/14443B, MIFARE and FeliCa card) MIFARE UID Reading, Data Reading and Writing ISO15693 UID Reading, Data Reading and Writing - Binary data binary data ASCII code binary data binary data ASCII code binary data binary data

Electrical Characteristics

Interface
RS232 / USB Virtual COM / USB HID
- RS232 / USB Virtual COM / USB HID RS232 / USB Virtual COM RS232 / USB Virtual COM / USB HID RS232 / USB Virtual COM RS232 / USB Virtual COM RS232 / USB Virtual COM / USB HID RS232 / USB Virtual COM RS232 / USB Virtual COM
E-Catalogue
Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • Champtek p/n0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-FS/FI300-RS232

    • Cable-CHK-FS/FI300-RS232
    • Champtek p/n0116-0800031
    • RemarkRS232 interface cable for Fixed mount FS / FI 300 RS232 black DB9+DC
    • ColorBlack
  3. Cable-CHK-USB(Molex P1.25, Black)

    • Cable-CHK-USB(Molex P1.25, Black)
    • Champtek p/n0114-3A01101
    • RemarkInterface cable USB, USB A Type + Molex P1.25 11P straight cable Black color length 1.5m
    • ColorBlack
  4. Mount-RFR811 Back and Side Bracket(Metal)

    • Mount-RFR811 Back and Side Bracket(Metal)
    • Champtek p/n0124-RFR8001
    • RemarkRFR811 Wall Mount Bracke spcc 1.2t EPD Black
    • Color-
  5. Mount-RFR811 Back Bracket(ABS)

    • Mount-RFR811 Back Bracket(ABS)
    • Champtek p/n0121-RFR8031
    • RemarkRFR811 Wall Mount Color:Black ABS
    • Color-
