Features

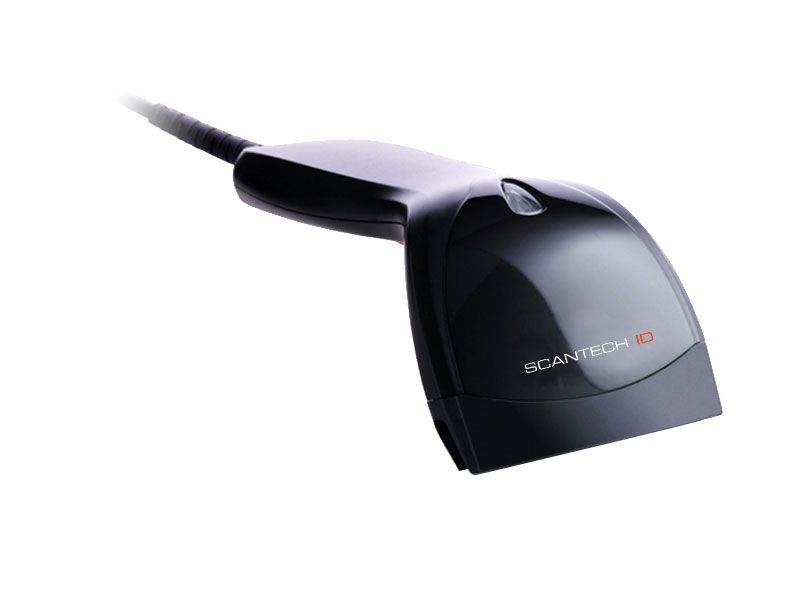

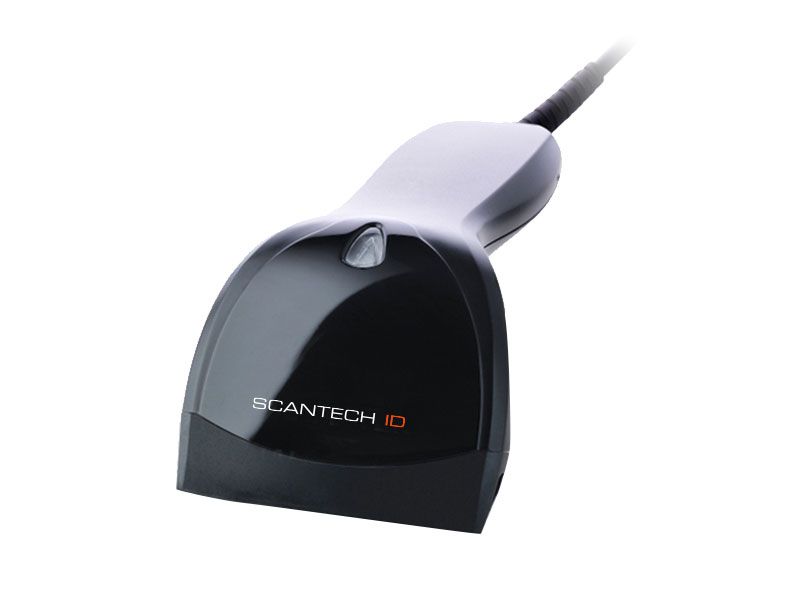

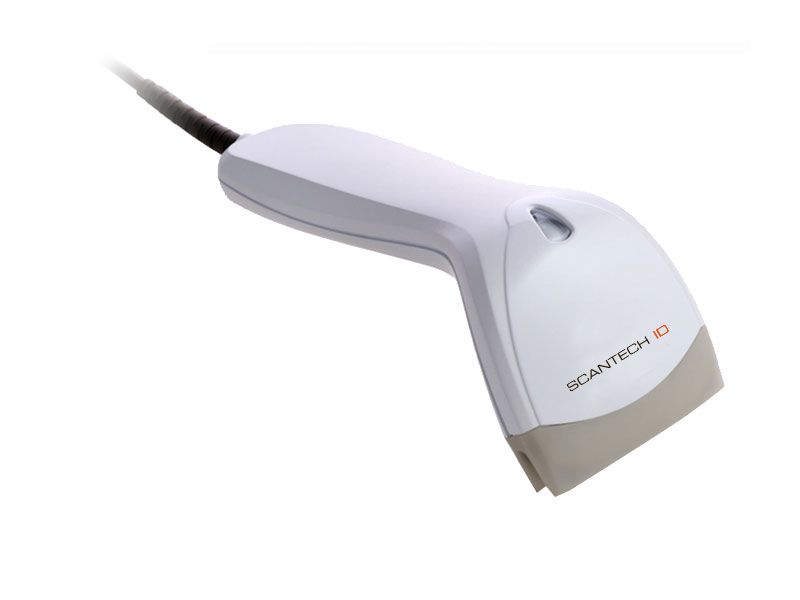

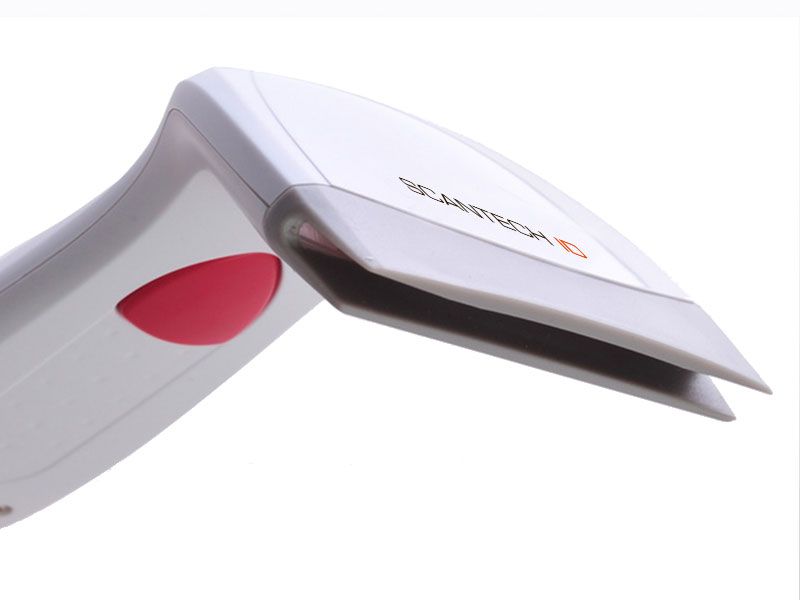

SD700 is a brand new ultra slim Handheld linear imaging contact reader represents for customers who require a cost-effective solution for close contact to middle range bar code reading without sacrificing quality and performance. Aside from the characteristics of “high performance, high sensitivities and high stability” inherited from Champtek previous products, SD700 provides the guarantee of excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. It is designed as ultra slim shape, lightweight and low energy consumption, In performance, it can read 8cm bar code at contact window and up to 10cm reading depth with scan speed up to 200 scans per second, which benefits the user when reading standard or wide bar codes. The SD700 reader is available be used as triggerless readers, by simply disabling the trigger with a configuration setting. SD700 provides a complete all in one multi-interface solution, including RS-232, USB, Keyboard Wedge. It is absolutely the best choice for retailers using POS or regular cash register system.

  • Ultra slim handle, lightweight and low energy consumption
  • Reading 8cm barcode at windows and reading depth up to 10cm
  • Support minimum resolution 3 mil/0.076 mm
  • Multiple Interface options, USB / RS-232 / Keyboard Wedge
  • Supports GS1 DataBar™ linear codes
  • 1D Codes
  • GS1
  • SD700

    SD700
  • Compare to

Tech Specs

Environmental

Ambient light
Up to 20,000 Lux Max
- Up to 5,000 Lux Max Up to 20,000 Lux Max Up to 10,000 Lux Max

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Drop Resistance Print Contrast Ratio Width of Field
171.3 x 82.8 x 75mm 632±5nm Red LED Contact to 80mm@20mil/0.5mm, PCS90%,Code39 3mil/0.076mm 200 scans±10% Beeper and LED 1.2m 30% 90mm (80mm at window)
- 166.4 x 78 x 77.8mm 173.5 x 90 x 56.2mm 168 x 65 x 54.9mm - 632±5nm Red LED 632±5nm Red LED 632±5nm Red LED - Contact to 60mm@20mil/0.5mm, PCS90%,Code39 Contact to 50mm@20mil/0.5mm, PCS90%, Code39 Contact to 300mm@20mil/0.5mm, PCS90%, Code39 - 4mil/0.1mm 4mil/0.1mm 4mil/0.1mm - 120 scans 120 scans 100 scans±10% - Beeper Beeper and LED Beeper - 1.2m 1.2m 1.5m - 30% 30% 45% - 80mm (60mm at window) 90mm (80mm at window) 90mm (40mm at window)

Electrical Characteristics

Interface Power
RS232, USB(HID,Virtual COM),KBW DC 5V
- RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW RS232, USB(HID,Virtual COM),KBW - DC 5V DC 5V DC 5V
Configuration Guide Datasheet E-Catalogue
Download Download Download

Accessories

  1. Adaptor-5V(180 degree)

    • Adaptor-5V(180 degree)
    • Champtek p/n0104-SP00081
    • RemarkSwitch Power Adaptor 90-264V 5V/2A DC Plug 180 degree
    • Color-
  2. Cable-CHK-PS/2(Beige)

    • Cable-CHK-PS/2(Beige)
    • Champtek p/n0114-2150111
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  3. Cable-CHK-PS/2(Black)

    • Cable-CHK-PS/2(Black)
    • Champtek p/n0114-2150121
    • RemarkKeyboard wedge/PS2 interface cable, MD6F+MD6M+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  4. Cable-CHK-RS232(Chip, Beige)

    • Cable-CHK-RS232(Chip, Beige)
    • Champtek p/n3114-5801131
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Beige color length 1.5m
    • ColorBeige
  5. Cable-CHK-RS232(Chip, Black)

    • Cable-CHK-RS232(Chip, Black)
    • Champtek p/n3114-5801141
    • RemarkRS232 Interface cable, DB9F Moldin Head With PCB +DC-Jack+RJ45 10P straight cable Black color length 1.5m
    • ColorBlack
  6. Cable-CHK-SD500/700-PS/2(Black)

    • Cable-CHK-SD500/700-PS/2(Black)
    • Champtek p/n0114-1502121
    • RemarkInterface cable Keyboard wedge for SD500/700 MD6M + MD6F + Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
  7. Cable-CHK-SD500/700-RS232(Black)

    • Cable-CHK-SD500/700-RS232(Black)
    • Champtek p/n3114-1201121
    • RemarkInterface cable RS232 for SD500/700 DB9F+ DC-JACK + Molex P1.25 11P straight cable black color length 1.5m
    • ColorBlack
  8. Cable-CHK-SD500/700-USB(Black)

    • Cable-CHK-SD500/700-USB(Black)
    • Champtek p/n0114-SD70001
    • RemarkInterface cable USB for SD500/700, USB+ Molex P1.25 11P Straight Cable Black Color length 1.5m
    • ColorBlack
  9. Cable-CHK-USB(Beige)

    • Cable-CHK-USB(Beige)
    • Champtek p/n0114-980A131
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Beige color length 1.5m
    • ColorBeige
  10. Cable-CHK-USB(Black)

    • Cable-CHK-USB(Black)
    • Champtek p/n0114-980A231
    • RemarkUSB Interface cable, USB A TYPE RJ45 straight Black color length 1.5m
    • ColorBlack
  11. Stand-SG/LG/IG3xx Series(Holder, Beige)

    • Stand-SG/LG/IG3xx Series(Holder, Beige)
    • Champtek p/n0121-CH02011
    • RemarkPlastic Holder for SG3xx, IG3xx,LG3xx series Beige color
    • ColorBeige

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
