MICA M-9030

Easy integration in all type of built-in and OEMapplications.

MICA M-9030
MICA M-9030
MICA M-9030
  • MICA M-9030
  • MICA M-9030
  • MICA M-9030

Features

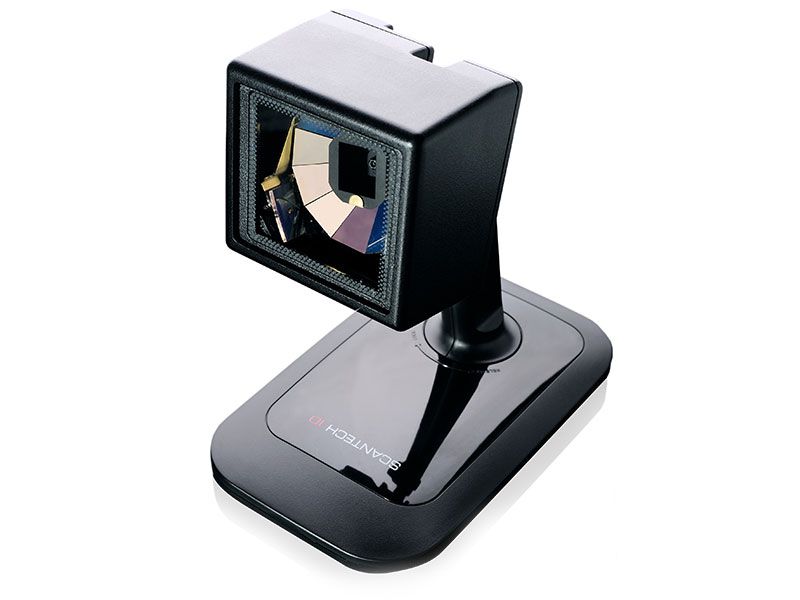

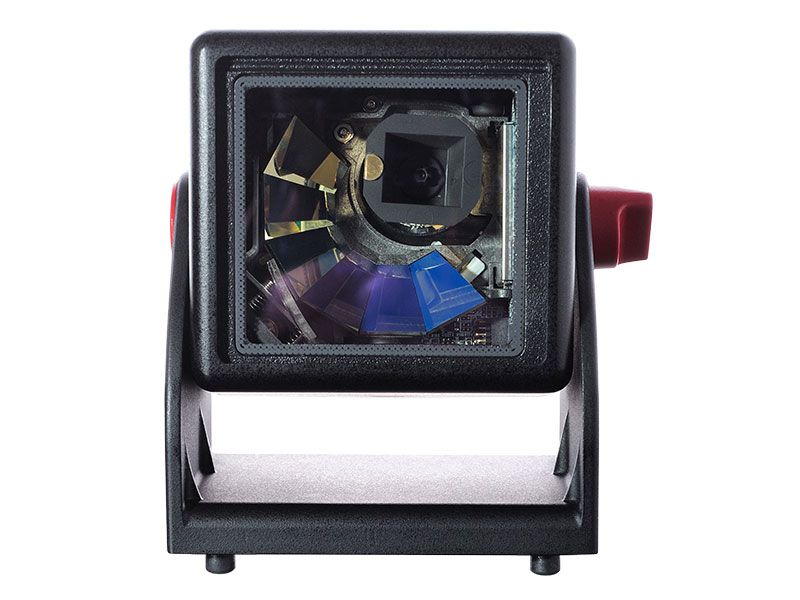

The Scantech ID Mica M-9030 is a very compact and high performance omni-directional laser barcode scan engine ideal for built-in and Original Equipment Manufacturer (OEM) applications. With 24 scan lines in 6 scan directions and 2000 scans per second, the Mica M-9030 provides an outstanding scan performance and makes it very easy to scan all common type 1D barcodes, including GS1 DataBar, independent of its orientation. The optimized compact design makes it very easy to integrate the Mica M-9030 in many built-in and OEM applications like kiosks, ATM’s, return vending machines, price verifiers and access control terminals. The Mica M-9030 has a multi interface, user upgradeable software and auto-sense which saves costs and improves life time. If you are looking for a compact, easy to integrate barcode scan engine with an outstanding scan performance, then the Mica M-9030 is the answer.

  • Most compact omni-directional laser barcode scan engine in its class.
  • Optimized design for built-in and OEM applications.
  • Reading all common 1D barcodes, incl. GS1 DataBar, regardless of its orientation.
  • Scantech ID STAR reconstruction software for reading of fragmented and damaged barcodes.
  • High first scan rate.
  • Auto-Sense function, which saves power and improves life time.
  • 1D Codes
  • GS1

  • MICA M-9030

    MICA M-9030

  • Compare to

Tech Specs

Environmental

Ambient light
Up to 4,800 Lux
- Up to 4,800 Lux 0~100,000lux (natural light) - - 100,000 Lux Max. (Sunlight) - Up to 100,000 Lux Up to 4,800 Lux Up to 100,000 Lux

Specifications

Dimension(WxDxH) Light Source Depth of Field Resolution Scan Rate Indicators Print Contrast Ratio Scan Pattern EAS
67x62x46mm (body only) 650±10nm VLD Up to 230mm@13mil/0.33mm, PCS90%, Code 39 5mil/0.127mm 2,000 scans ± 5% Beeper and LED 25% 6 direction scan field, 24 lines scan pattern N/A
- Dimension(WxDxH) 116x84.5(upper)x164 mm / 116x100(bottom)x164 mm - 97.89 x 74.89 x 137.64 mm 97.89 x 74.90 x 137.94 mm 77 x 100 x 123 mm - 94 x 97.71 x 161.51 mm 94 x 97.71 x 161.51 mm 67x62x46mm (body only) - 650nm ± 10nm Laser diode White / RED LED Visible White LED Visible White LED White Light LED - 625± 10nm Red LED 650±10nm VLD 625±10nm VLD - Up to 240mm@13mil/0.33mm, PCS90%, Code 39 20-50mm Up to 210mm@20 mil/0.5mm, PCS90%, Code 39 Up to 210mm@20 mil/0.5mm, PCS90%, Code 39 - - Up to 230mm@13 mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 - - - 1280 (H) x 800 (V) pixels; 3.0 mil (Code 39), 8 mil (QR Code) 3.0 mil (Code 39), 8 mil (QR Code) 1D: 4.0 mil/0.1mm, 2D: 6.67mil/0.17mm - 1D: 4mil/0.1mm, 2D: 8mil/0.2mm 5mil/0.127mm 1D: 4mil/0.1mm, 2D: 8mil/0.2mm - 1350 scans 60 frames per second - 60 scans per second 120 scans per second - 60 images 2,000 scans ± 5% 60 images - Beeper and LED - Beep and LED (Standby Orange, Good read Blue) Beep and LED Beep - Beeper and LED Beeper and LED Beeper and LED - 25% - - - >= 20% - 25% 25% 25% - 5 direction scan field, 20 lines scan pattern, Single Line option - - - - - - 6 direction scan field, 24 lines scan pattern - - Yes - - - - - Yes Yes N/A

Electrical Characteristics

Interface Power
RS232, USB(HID, Virtual COM), KBW, Power USB (option) DC 5V @2A
- RS232, USB(HID, Virtual COM) - RS232, USB (HID or Virtual COM) RS232, USB(HID, Virtual COM) - - RS232, USB(HID, Virtual COM) RS232, USB(HID, Virtual COM), KBW, Power USB (option) RS232, USB(HID, Virtual COM) - DC 5V @2A 1.75W DC 5V @2A DC 5V @2A DC Adaptor +5V ±5% - DC 5V @2A DC 5V @2A DC 5V @2A
Configuration Guide Datasheet Driver-OPOS Driver-Virtual COM E-Catalogue User's Manual
Download Download Download Download Download Download

Accessories

  1. Adaptor-5V(Small, Length=2.5m)

    • Adaptor-5V(Small, Length=2.5m)
    • P/N0104-SP00091
    • RemarkSwitch Power Adaptor 90-264V 5V/2A 90 degree 2.5m
    • Color-

  2. Cable-SID-Power USB(Length=3m)

    • Cable-SID-Power USB(Length=3m)
    • P/N0114-S801121
    • RemarkScantech ID RJ48+Power USB Straight black color 3m length
    • Color-

  3. Cable-SID-PS/2(Length=2m)

    • Cable-SID-PS/2(Length=2m)
    • P/N0114-SM02121
    • RemarkScantech ID PS2 MD6M + MD6F + RJ48 Straight Cable Black color 2m length
    • Color-

  4. Cable-SID-RS232(Length=2m)

    • Cable-SID-RS232(Length=2m)
    • P/N0114-SM01121
    • RemarkScantech ID RS232 DB9F + RJ48 Straight Cable Black Color 2m length
    • Color-

  5. Cable-SID-USB(Length=1.5m)

    • Cable-SID-USB(Length=1.5m)
    • P/N0114-SM04121
    • RemarkScantech ID USB + RJ48 Straight Cable Black color 1.5m length
    • Color-

  6. Mount-MICA Back Mount Plate

    • Mount-MICA Back Mount Plate
    • P/N618B712600D1000
    • RemarkQuantum-E Back Plate kits (only)
    • Color-

  7. Stand-MICA(High)

    • Stand-MICA(High)
    • P/N7184180203D0000
    • RemarkHigh Stand of MICA
    • Color-

  8. Stand-MICA(Small)

    • Stand-MICA(Small)
    • P/N7184170203D0000
    • RemarkSmall stand of MICA
    • Color-
