Features

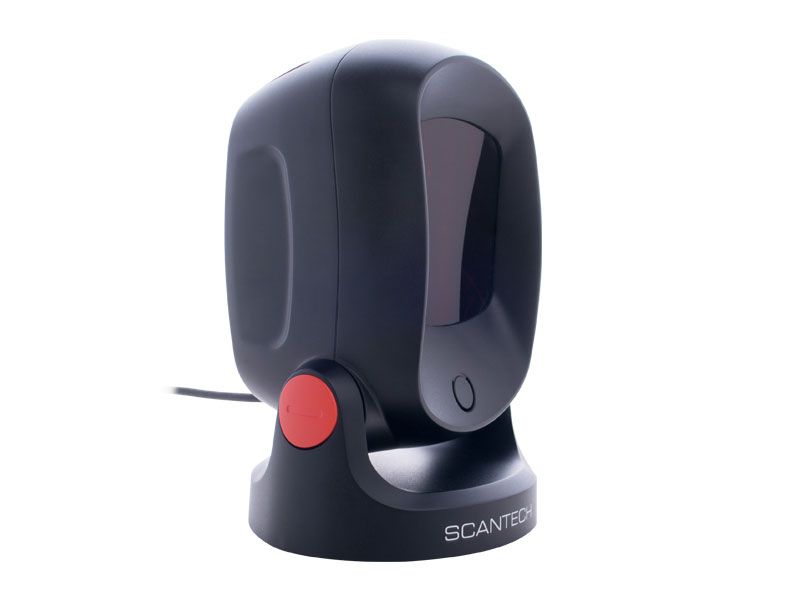

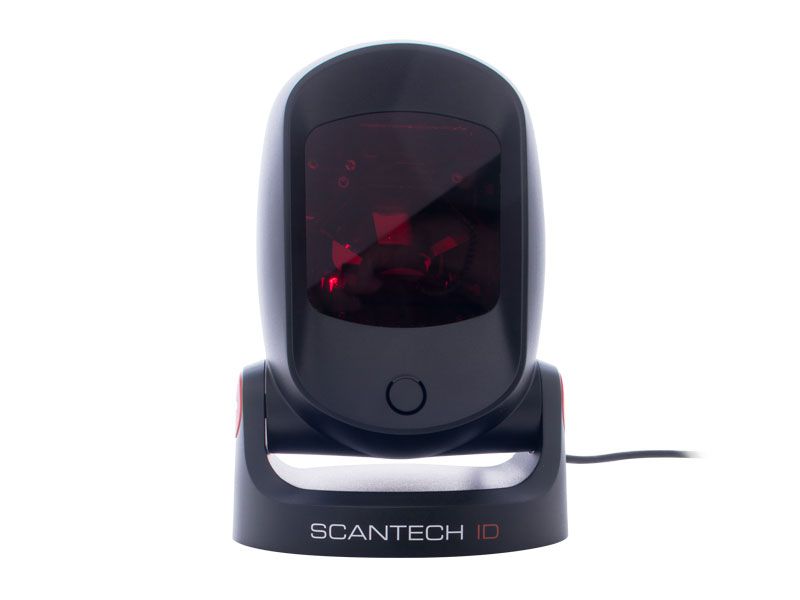

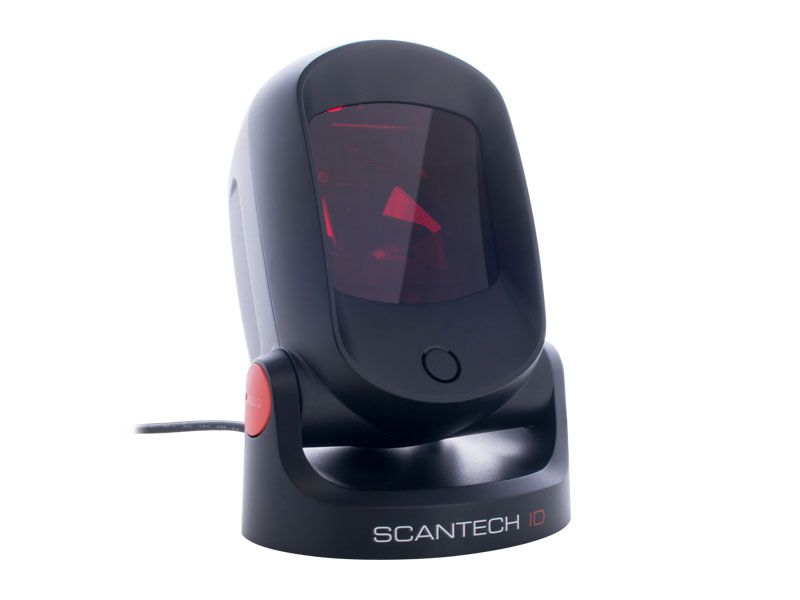

AQUILA A-8050 is small in size, but is a high performance counter scanner designed to solve the bottleneck of computing system by traditional counter scanner. The AQUILA A-8050’s superior performance, reliability and durability which mean increase overall performance and values of system in retail/POS computing and enterprise system solutions. It can delivers higher scan performance than any other counter scanner on the market. With an unequalled 1350 scans per second and a unique scan pattern of 20 scans lines. The AQUILA is the choice of every retailer who wants to optimize counter environment with a winning scanner performance and a great design!

  • Provides aggressive scanning in 20 omni-directional scanning lines with superior scanning performance to hand presented barcodes.
  • An adjustable scan head enables users to tilt the scanner 45° for targeted scanning of products.
  • Reading all common 1D barcodes, incl. GS1 DataBar, regardless of its orientation Scantech ID STAR reconstruction software for reading of fragmented and damaged barcodes.
  • IP42 sealing protection.
  • With its auto-sense function can save power and improve lifespan time.
  • A built-in RF EAS antenna increases efficiency by simultaneously deactivating RF EAS tags and decoding barcodes.
  • 1D Codes
  • GS1
  • AQUILA A-8050

    AQUILA A-8050
  • Compare to

Tech Specs

System Architecture

Weight
Approx. 14 oz (400g)
- - - - -

Environmental

Operating temperature Storage temperature Humidity Ambient light
0 °C to 40 °C (32 °F to 104 °F) -20 °C to 60°C (-4 °F to 140°F) 20% to 95% (Non-condensing) Up to 4,800 Lux
- - - - - - - - - - - - - - - - Up to 100,000 Lux Up to 4,800 Lux Up to 4,800 Lux Up to 100,000 Lux

Specifications

Material Dimension(WxDxH) Light Source Depth of Field Scan Rate Indicators Print Contrast Ratio Scan Pattern EAS
ABS Plastic 164x116x84mm 650nm ± 10nm Laser diode Up to 240mm@13mil/0.33mm, PCS90%, Code 39 1350 scans Beeper and LED 30% 5 direction scan field, 20 lines scan pattern, Single Line option Yes
- - - - - - 161.5x97.7x94xmm 161.5x97.7x94xmm 67x62x46mm (body only) 67x62x46mm (body only) - 625± 10nm Red LED 650±10nm VLD 650±10nm VLD 625±10nm VLD - Up to 230mm@13 mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 Up to 230mm@13mil/0.33mm, PCS90%, Code 39 - 60 images 2,000 scans ± 5% 2,000 scans ± 5% 60 images - Beeper and LED Beeper and LED Beeper and LED Beeper and LED - 30% 30% 30% 30% - - 6 direction scan field, 24 lines scan pattern 6 direction scan field, 24 lines scan pattern - - Yes Yes N/A N/A

Life Time

MTBF(Calculated)
50,000 hours
- - - - -

Electrical Characteristics

Interface Power Power output
RS232, USB(HID, Virtual COM) DC 5V @2A TBD
- RS232, USB(HID, Virtual COM) RS232, USB(HID, Virtual COM), KBW, Power USB (option) RS232, USB(HID, Virtual COM), KBW, Power USB (option) RS232, USB(HID, Virtual COM) - DC 5V @2A DC 5V @2A DC 5V @2A DC 5V @2A - - - - -
Configuration Guide Datasheet E-Catalogue
Download Download Download

Accessories

Relative FAQ's

  • How to re-establish BT connection?

    When the scanner is the master device and cradle is the salve, while scanner goes to sleep mode, the cradle is always on for waiting the master device, to re-establish the connection is controlled by the master, hence press a trigger of the scanner will re-establish the connection

    When you connect the scanner with PC, the scanner is set to Slave mode and the PC is the master, when BT disconnect you have to establish the connection from PC, since PC is the master device, it will search the slave device, and the slave device is listening.
